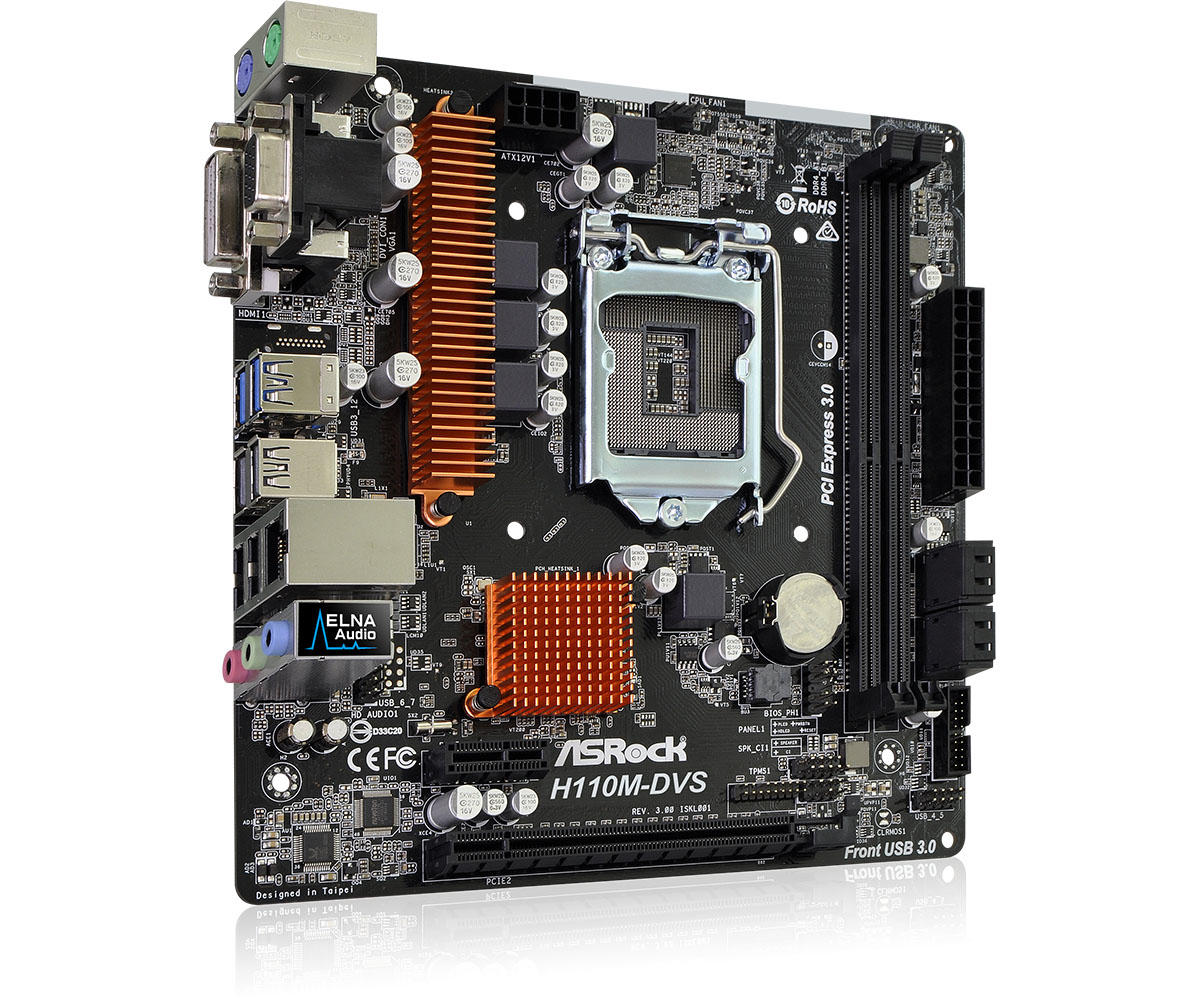

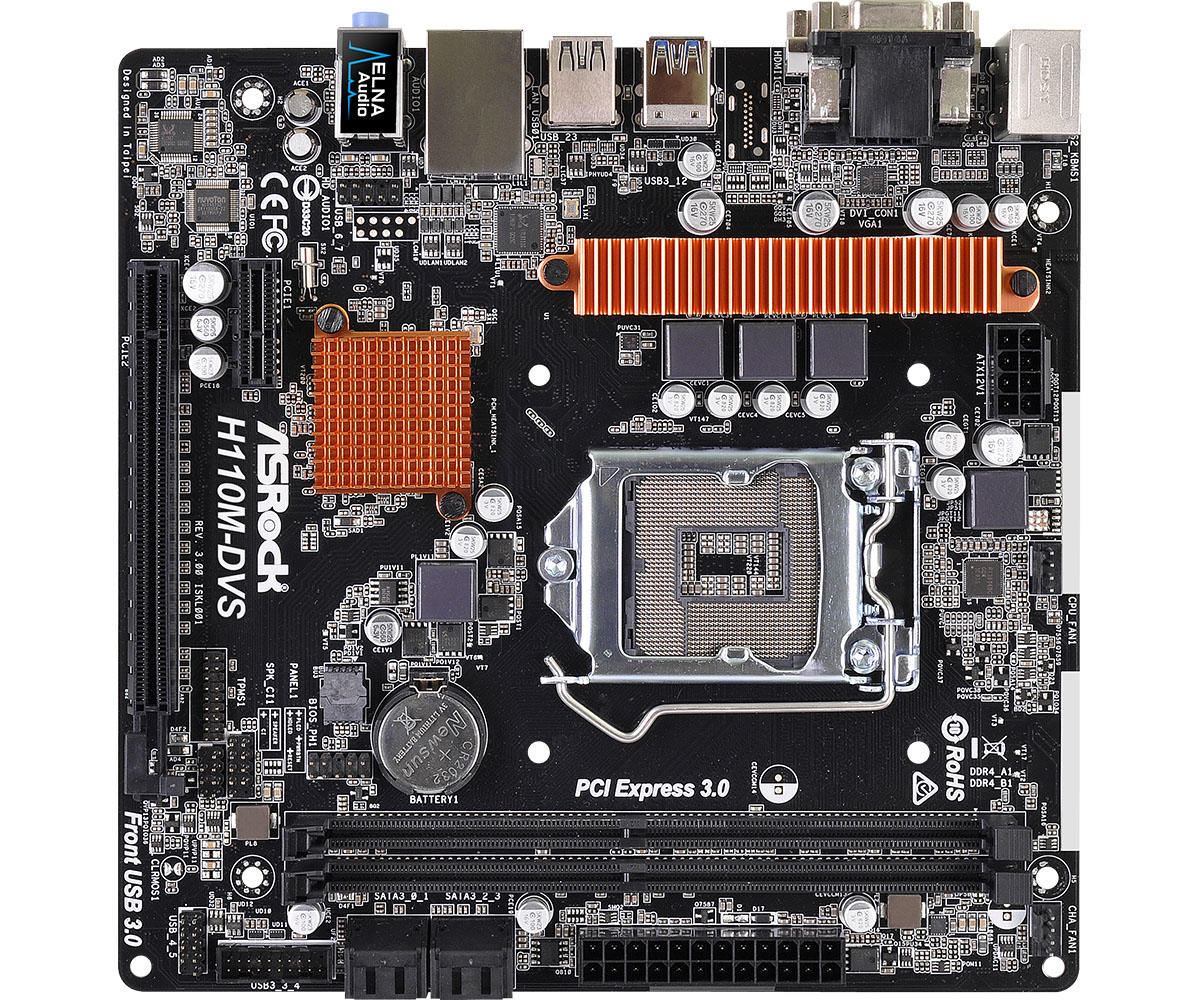

AsRock H110M-DVS R3.0, VGA, D-DDR4, SATA, USB2/3, Soc1151

55,00
Op voorraad. Voor 17:00 uur besteld is morgen in huis of direct afhalen.
  • 30 dagen bedenktijd
  • Achteraf betalen via AfterPay
  • Gratis verzending vanaf 50
  • Niet goed, geld terug
  • Klantenservice 010 44 55 400

Prijswekker

Ontvang een email wanneer dit product op of onder een gewenste prijs komt.

Specificaties

Processor socket 1151
Chipset Intel
Type geheugen DDR4
Max werkgeheugen 32GB
Formaat moederbord microATX

Productinformatie

Artikelcode MOBOARH11020
Partnummer 90-MXB4A0-A0UAYZ
EANcode 4717677331998
Garantietermijn 2jr
- ASRock Super Alloy
- Supports 6th Generation Intel® Core™ Processors (Socket 1151)
- Supports DDR4 2133
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output Options: DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3
- 4 USB 3.0 (2 Front, 2 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop

High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end 100 Series motherboards.

UEFI EZ Mode
EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + DVI combo, you have more graphics output options now.

4 Power Phase Design
The power phase design offers smooth power delivery to the CPU, unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.

Supports DDR4 2133
Supports the latest DDR4 memory modules and most extreme memory performance!

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

Gigabit LAN
This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.

Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!

ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.

Advies nodig?

Onze klantenservice is nu gesloten.

Of bel 010 44 55 400

Schrijf een review

Geen review

Schrijf ook een review en help andere klanten de juiste keuze te maken.

Interne aansluitingen

TPM connector:
Aantal M.2 (M) slots: Geen
Aansluiting voor audiopaneel aan voorzijde:
Chassis intrusion aansluiting:
USB 3.0 (3.1 Gen 1)-aansluitingen: 1
Opslagaansluitingen: SATA III
Aansluiting voor ATX voeding (24-pin):
Aansluiting voor CPU koeler:
USB 2.0 aansluitingen: 1
Aantal SATA III connectors: 4

Uitbreidingsmodules

PCI Express x1 (Gen 2.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1

Processor

Intel® Core i3/i5/i7 series: i3-6xxx,i5-6xxx,i7-6xxx
Compatibele processors: Celeron,Core i3,Core i5,Core i7,Pentium
Processor socket: 1151
Processor: Intel

Inhoud van de verpakking

Meegeleverde kabels: SATA

Grafisch

Maximum geheugen grafische adapter: 1024 MB
Discrete grafische ondersteuning:
Ingebouwde grafische adapter:
Grafische adapter: HD Graphics
DirectX versie: 12.0
HDCP:
Maximum resolutie: 1920 x 1200 Pixels
Grafische adapter-familie: Intel

BIOS

ACPI version: 5.0
BIOS type: UEFI AMI
Grootte BIOS-geheugen: 8MB

Prestatie

Formaat moederbord: microATX
Audiosysteem: Realtek ALC887
Ondersteunt Windows: Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Window
Component voor: PC
Chipset: Intel
Chipset moederbord: Intel H110
Certificering: FCC, CE, WHQL
Audio output channels: 7.1 kanalen

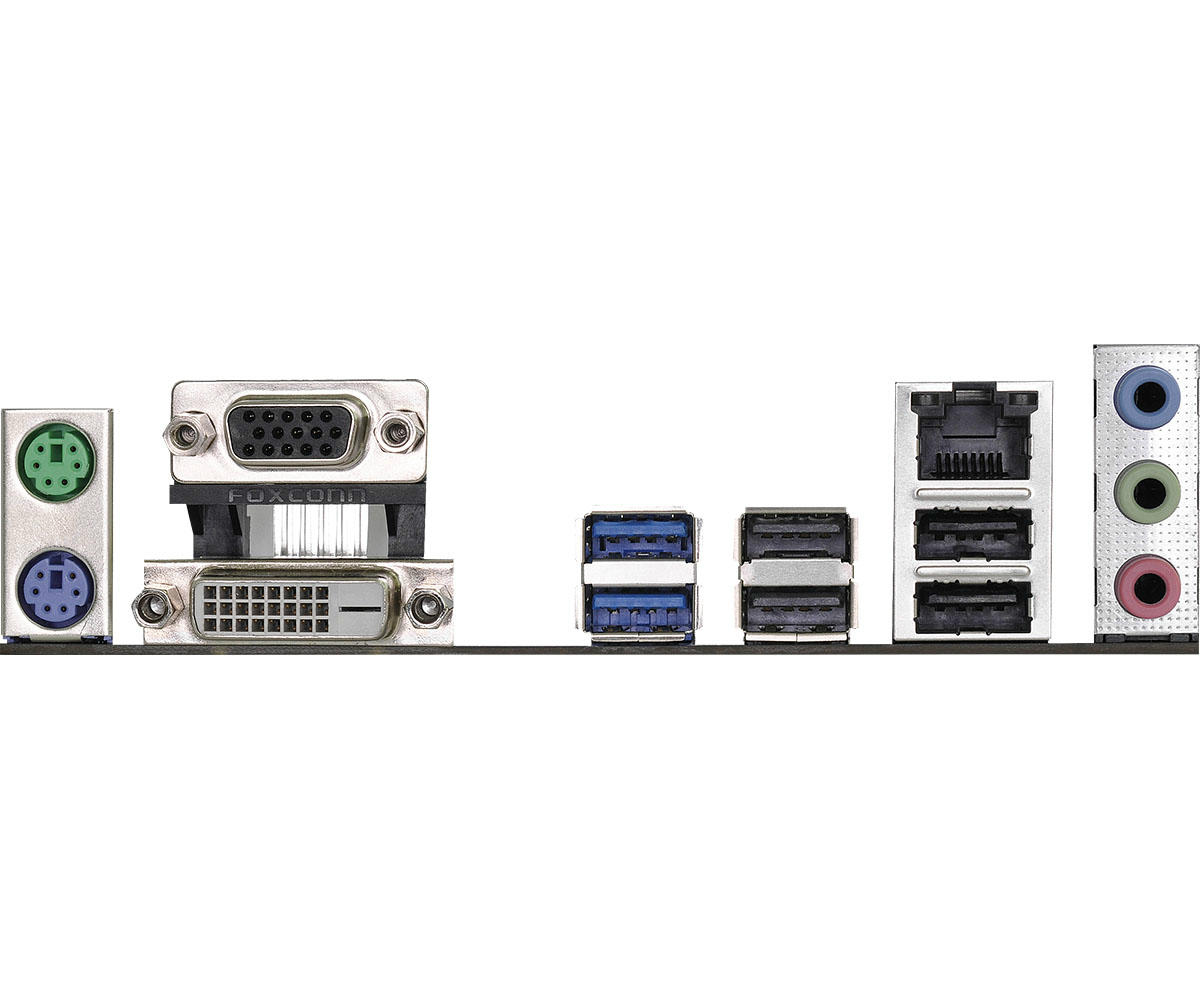

Aansluitingen achterzijde

Aantal Ethernet LAN (RJ-45)-poorten: 1
PS/2 poort(en): 2
Aantal USB 2.0-poorten: 4
DVI-D poorten: 1
VGA (D-Sub)poort(en): 1
Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 2

Geheugen

Supported memory clock speeds: 2133 MHz
Max werkgeheugen: 32GB
Non-ECC:
Type geheugen: DDR4
Geheugen slots type: DIMM
Aantal geheugenslots: 2
Niet gebufferd geheugen:
Geheugen kanaal: Dual

Netwerk

Wake-on-LAN:
Wi-Fi:
LAN controller: Realtek RTL8111C
Ethernet LAN:
Ethernet interface type: Gigabit Ethernet

Gewicht en omvang

Breedte: 191 mm
Diepte: 188 mm
