Asus E45M1-M Pro, AMD, VGA, USB3, DDR3,1394, PCI-E, Mini ITX

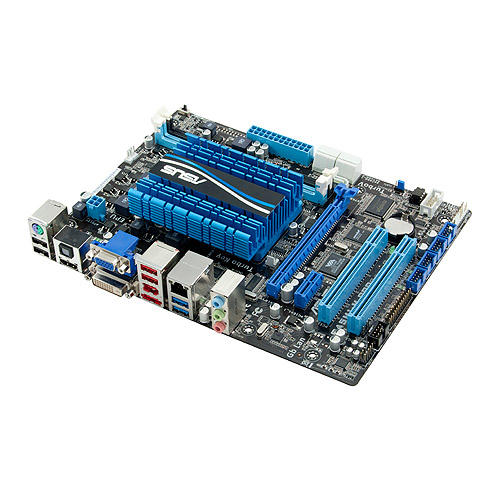

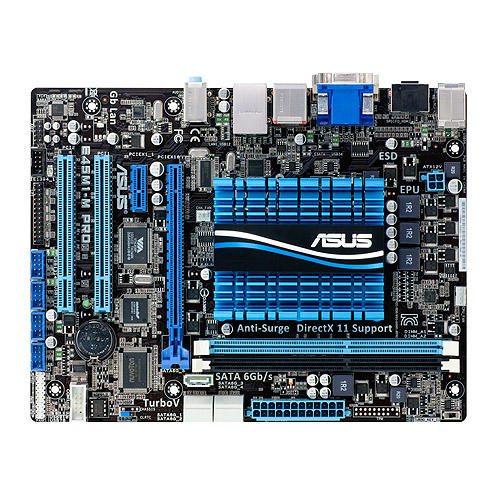

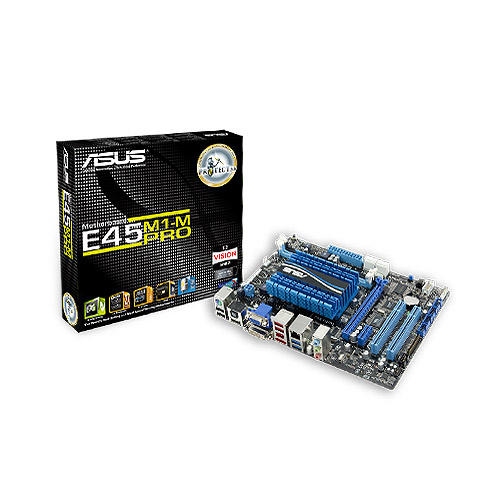

Asus E45M1-M PRO. AMD Fusion dual-core APU motherboard with support for DirectX 11
- UEFI BIOS(EZ Mode). Flexible & Easy BIOS Interface
- Integrated AMD Dual-Core Processor E-450 with AMD Radeon™ HD 6320 Graphics
- Protect3.0 Protect the Earth & the system & you
- AI Suite II. One-stop Access to Innovative ASUS Features

Specifications:
- CPU: AMD Fusion APU E-450 Dual-Core onboard Processors. Supports AMD® Turbo Core Technology
- Chipset: AMD FCH A50M (Hudson M1)
- Memory: 2 x DIMM, Max. 8GB, DDR3 1600(O.C.)/1333/1066 MHz Non-ECC, Un-buffered Memory. Single Channel Memory Architecture
- System Bus: Up to 2.5 GT/s UMI Link
- Graphic:
Integrated ATI Radeon™ HD 6320 GPU

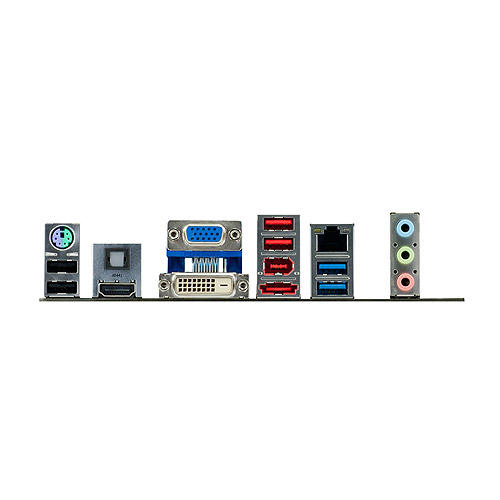

• Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 2560 x 1600 @ 60 Hz
• Supports DirectX 11
- Expansion Slots:
• 1 x PCIe 2.0 x16 (x4 mode)
• 1 x PCIe 2.0 x1
• 2 x PCI
- Storage:
Built-in Controller :
• 5 x SATA 6Gb/s port(s), white
• 1 x eSATA 6Gb/s port(s), red
- LAN: Realtek® 8111E , 1 x Gigabit LAN Controller(s)
- USB Ports:
• ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
• Built-in Controller : 12 x USB 2.0 port(s) (4 at back panel, black+red, 8 at mid-board)
- Form Factor: uATX Form Factor 9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm )
