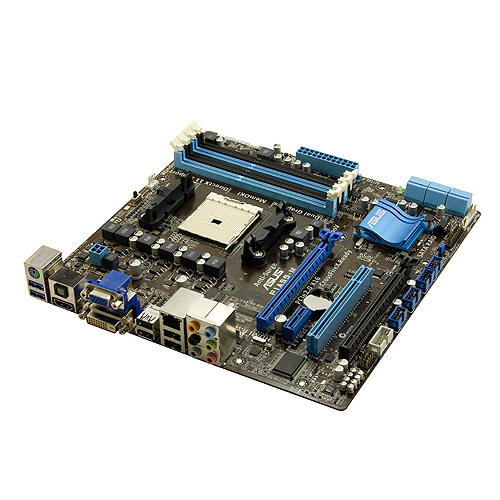

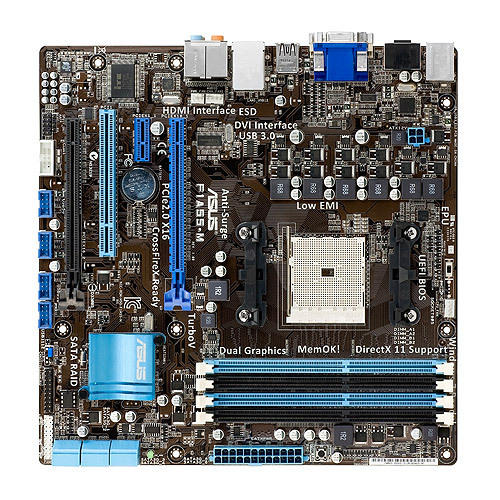

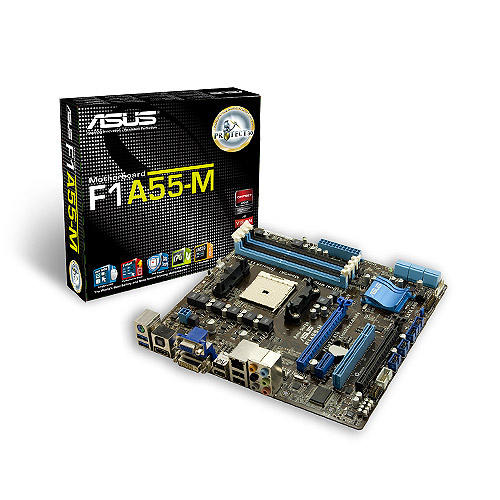

F1A55-M. Mouse-controlled UEFI BIOS with AMD A55 chipset & new FM1 socket APUs
- Protect 3.0. EPU, Anti-Surge, Low EMI and All Solid Cap
- UEFI BIOS. EZ Mode - Flexible & Easy BIOS Interface
- MemOK! Any memory is A-OK!
- TurboV. Feel the adrenaline rush of real-time O.C.!
- AI Suite II. One-stop Access to Innovative ASUS Features
Specificaties:
- CPU: AMD Socket FM1 A- Series/E2- Series Accelerated Processors. Supports AMD® Turbo Core 2.0 Technology
- Chipset: AMD A55 FCH (Hudson D2)
- Memory: 4 x DIMM, Max. 64GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
- Graphic:
• Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU
• Multi-VGA output support : HDMI/DVI/RGB ports *1
Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
• AMD® Dual Graphics technology support
• Supports DirectX 11
- Expansion Slots:
• 2 x PCIe 2.0 x16
• 1 x PCIe 2.0 x1
• 1 x PCI
- Storage:
AMD A55 FCH (Hudson D2) chipset :
• 6 x SATA 3Gb/s port(s), blue
• Support Raid 0, 1, 10, JBOD
- LAN: Realtek® 8111E , 1 x Gigabit LAN Controller(s)
- Audio: VIA VT1708S 8-Channel High Definition Audio CODEC
- USB Ports:
• Built-in Controller: 12 x USB 2.0 port(s) (4 at back panel, black, 8 at mid-board)
• Built-in Controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
- Form Factor: uATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- Note: *1: HDMI and DVI-D cannot work simultaneously.
