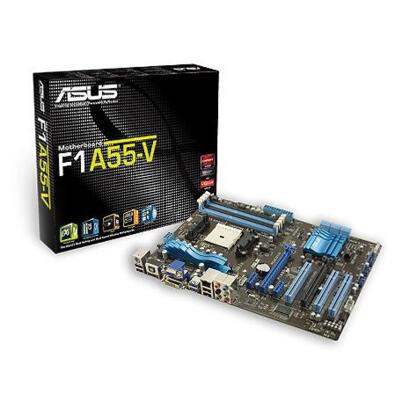

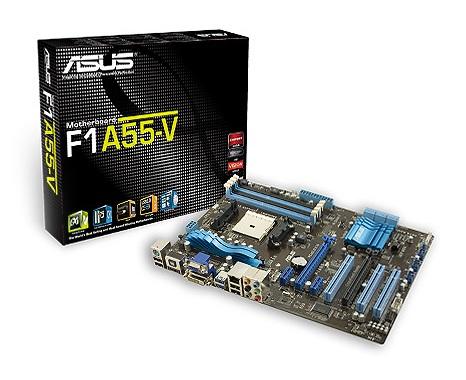

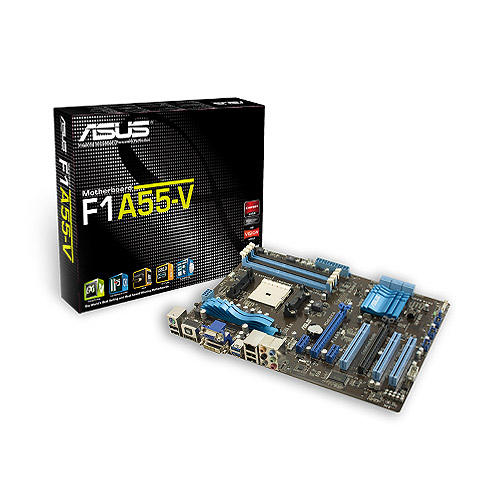

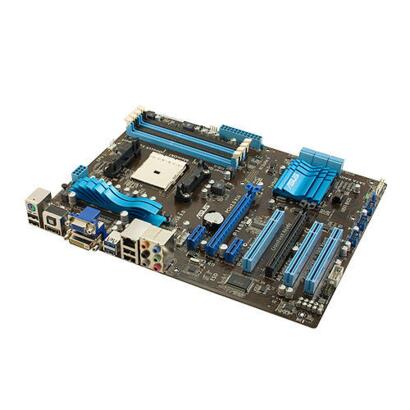

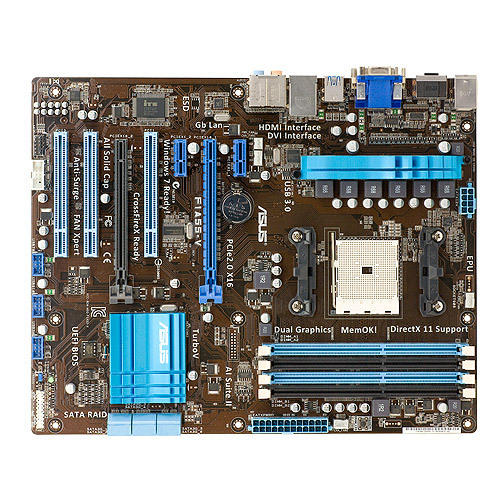

F1A55-V. Mouse-controlled UEFI BIOS with AMD A55 Chipset & Support for Multi-GPU CrossFireX
- Multi-GPU CrossFireX Support!
- UEFI BIOS. EZ Mode - Flexible & Easy BIOS Interface
- MemOK! Any memory is A-OK!
- ASUS TurboV. Easy, Real-Time O.C. Tunings
- AI Suite II. One-stop Access to Innovative ASUS Features
Specificaties:
- CPU: AMD Socket FM1 A- Series/E2- Series Accelerated Processors. Supports CPU up to 4 cores
- Chipset: AMD A55 FCH (Hudson D2)
- Memory: 4 x DIMM, Max. 64GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
- Graphic:
• Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU
• Multi-VGA output support : HDMI/DVI/RGB ports *1
Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
• AMD® Dual Graphics technology support *2
• Supports DirectX 11
- Multi-GPU Support: Supports AMD CrossFireX™ Technology
- Expansion Slots:
• 1 x PCIe 2.0 x16 (blue)
• 1 x PCIe 2.0 x16 (x4 mode, black)
• 2 x PCIe 2.0 x1
• 3 x PCI
- Storage:
AMD A55 FCH (Hudson D2) chipset :
• 6 x SATA 3Gb/s port(s), blue
• Support Raid 0, 1, 10, JBOD
- LAN: Realtek® 8111E , 1 x Gigabit LAN Controller(s)

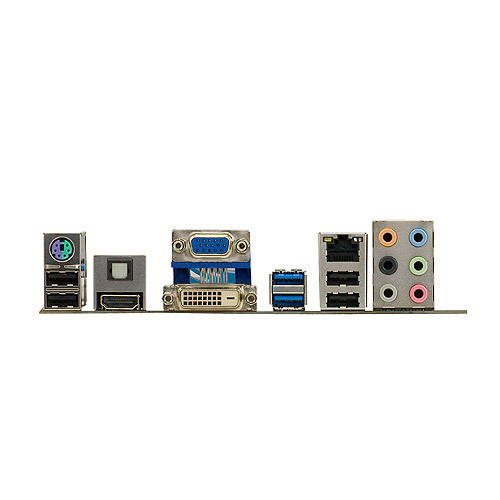

- USB Ports:
• AMD A55 FCH (Hudson D2) chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
• ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Note: *1: HDMI and DVI-D cannot work simultaneously.
*2: Refer to www.amd.com for the discrete GPUs which support Dual Graphics technology.
