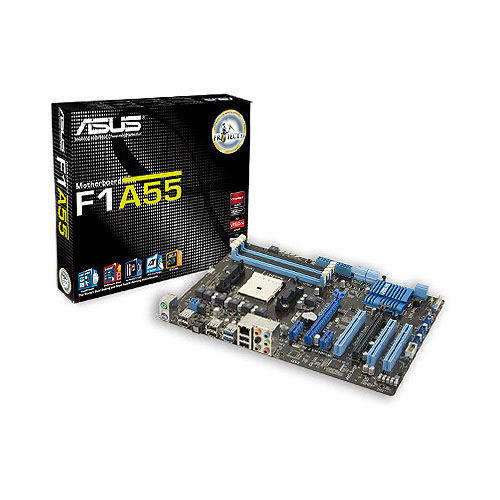

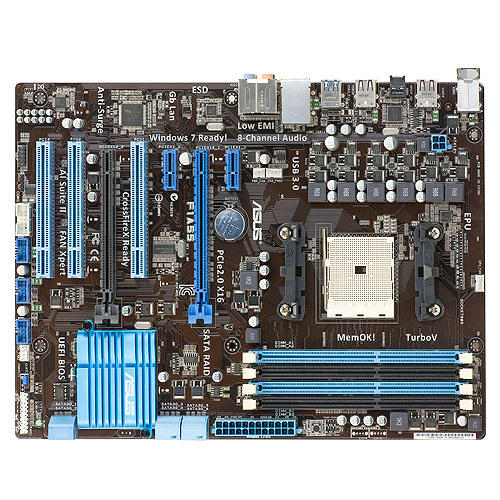

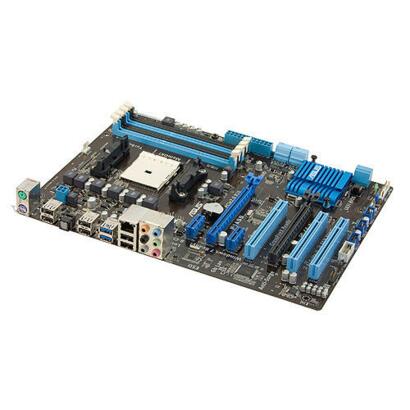

F1A55. Mouse-controlled UEFI BIOS with AMD A55 Chipset & New FM1 Socket APUs
- ASUS TurboV. Feel the adrenaline rush of real-time OC-now a reality
- UEFI BIOS. EZ Mode - Flexible & Easy BIOS Interface
- AI Suite II. One-stop Access to Innovative ASUS Features
- Multi-GPU CrossFireX Support!
- Anti-Surge Protection. Protect Your Device
Specificaties:
- CPU: AMD Socket FM1 A- Series/E2- Series Accelerated Processors. Supports CPU up to 4 cores
- Chipset: AMD A55 FCH (Hudson D2)
- Memory: 4 x DIMM, Max. 64GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
- Graphic:
• Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU *1
• AMD® Dual Graphics technology support *2
- Multi-GPU Support: Supports AMD CrossFireX™ Technology
- Expansion Slots:
• 1 x PCIe 2.0 x16 (blue)
• 1 x PCIe 2.0 x16 (x4 mode, black)
• 2 x PCIe 2.0 x1
• 3 x PCI
- Storage:
AMD A55 FCH (Hudson D2) chipset :
• 6 x SATA 3Gb/s port(s), blue
• Support Raid 0, 1, 10, JBOD
- LAN: Realtek® 8111E , 1 x Gigabit LAN Controller(s)

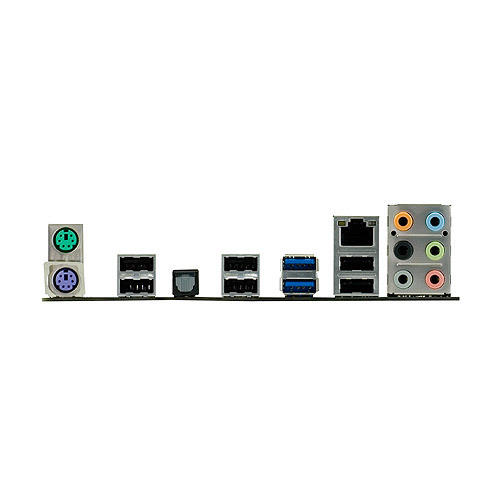

- USB Ports:
• AMD A55 FCH (Hudson D2) chipset : 12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)
• ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
- Form Factor: ATX Form Factor 12 inch x 8.8 inch ( 30.5 cm x 22.4 cm )
- Note:
*1: Requires additional VGA card to output display.
*2: Refer to www.amd.com for the discrete GPUs which support Dual Graphics technology.
