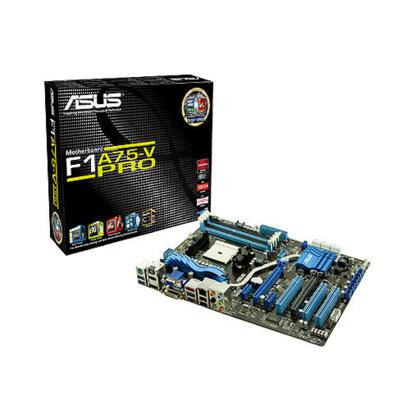

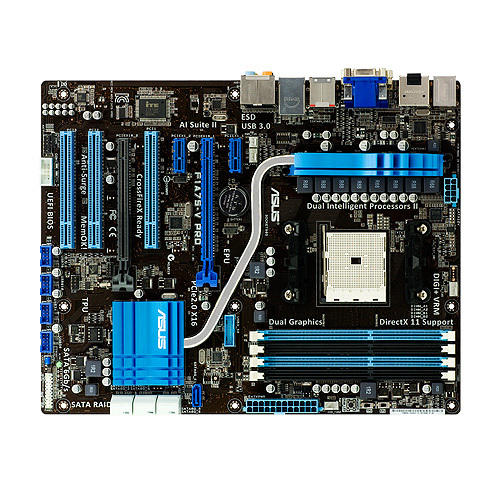

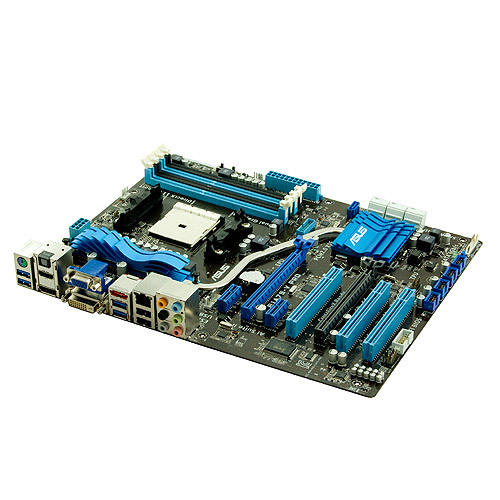

F1A75-V PRO. Enjoy Precise Digital Power Design & Excellent Graphics Performance on AMD A75 Platform
- Dual Intelligent Processors 2 with DIGI+ VRM- Digital Power Design: The New Standard
- UEFI BIOS. EZ Mode - Flexible & Easy BIOS Interface
- Auto Tuning. Auto System Level Up
- Native USB 3.0/SATA 6Gb/s Support - Double Access, Double Convenience
- AI Suite II. One-stop Access to Innovative ASUS Features
Specifications:
- CPU: AMD Socket FM1 A- Series/E2- Series Accelerated Processors. Supports CPU up to 4 cores
- Chipset AMD A75 FCH (Hudson D3)
- Memory: 4 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
- Graphic:
• Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU

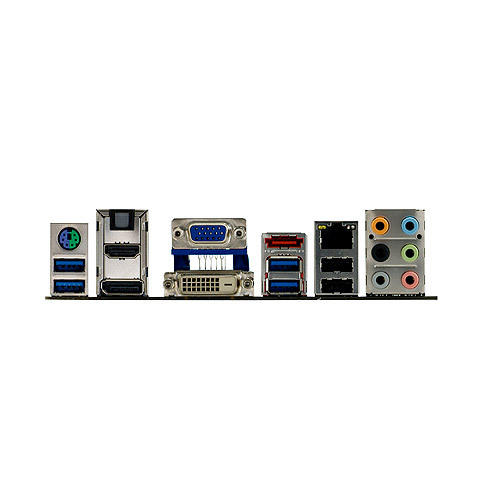

• Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
• Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
• Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
• AMD® Dual Graphics technology support *1
• Supports DirectX 11
- Multi-GPU Support: Supports AMD CrossFireX™ Technology
- Expansion Slots:
• 2 x PCIe 2.0 x16 ( x16, x4) *2
• 2 x PCIe 2.0 x1 *2
• 3 x PCI
- Storage:
AMD A75 FCH (Hudson D3) chipset :
• 6 x SATA 6Gb/s port(s), gray
• Support Raid 0, 1, 10, JBOD
ASMedia® PCIe SATA controller :
• 1 x SATA 6Gb/s port(s), navy blue
• 1 x eSATA 6Gb/s port(s), red
- LAN: Realtek® 8111E , 1 x Gigabit LAN Controller(s)
- USB Ports;
• AMD A75 FCH (Hudson D3) chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
• AMD A75 FCH (Hudson D3) chipset : 10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board)
• ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
