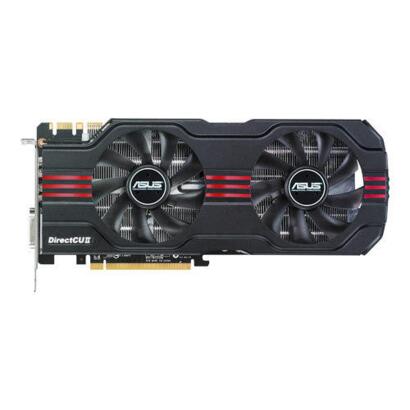

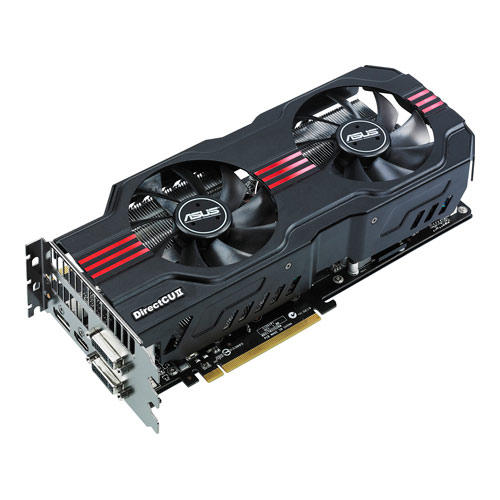

ENGTX580 DCII/2DIS/1536MD5. Asus GTX580 DirectCU II graphics cards with dual-fan cooling performance.
- Speed up heat dissipation with 600% more airflow via exclusive DirectCU with dual fan design
- Pump up graphics performance with Super Alloy Power that delivers 15% Performance boost, 2.5 longer lifespan, 35C cooler operation
- Crank up 50% faster clock speed with exclusive Voltage Tweak
- 3D Vision Surround for immersive 3D gaming
Specifications:
- Graphics Engine: NVIDIA GeForce GTX 580
- Bus Standard: PCI Express 2.0
- Video Memory: GDDR5 1536MB
- Engine Clock: 782 MHz
- Memory Clock: 4008 MHz ( 1002 MHz GDDR5 )
- RAMDAC: 400 MHz
- Memory Interface: 384-bit
- Resolution:
• D-Sub Max Resolution : 2048x1536
• DVI Max Resolution : 2560x1600

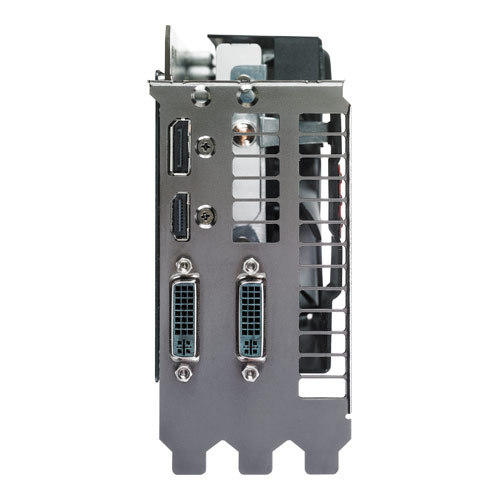

- Interface:
• D-Sub Output : Yes x 1 (via DVI to D-Sub adaptor x 1)
• DVI Output : Yes x 2 (DVI-I)
• HDMI Output : Yes x 1
• Display Port : Yes x 1 (Regular DP)
- Accessories:
• 1 x Power cable
• 1 x DVI to D-Sub adaptor
• 1 x Extended SLI cable
- ASUS Features:
• DirectCU Series
• Super Alloy Power
- Dimensions: 11.5 " x 5 " Inch
- Note: To have the best cooling performance ASUS ENGTX580 DCII/2DIS/1536MD5 extends the Fansink to 2.5 slot , please check your motherboard slot space before SLI.
Dual 8pin Power Connector is required for the best performance
