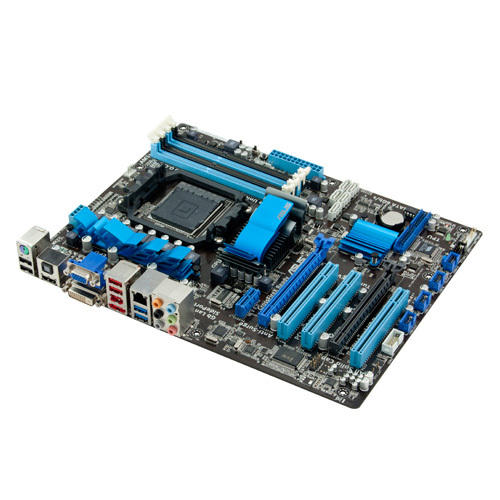

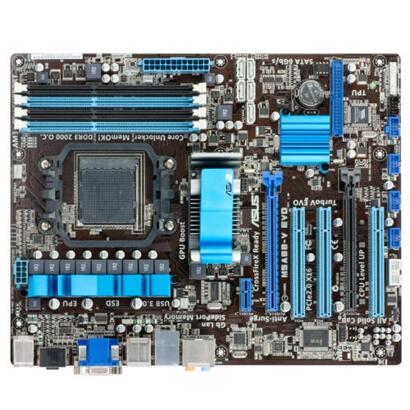

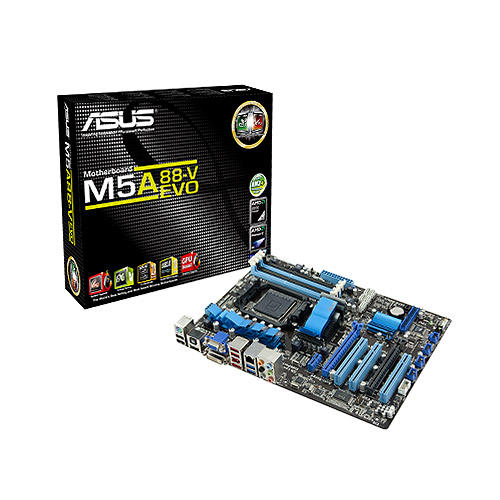

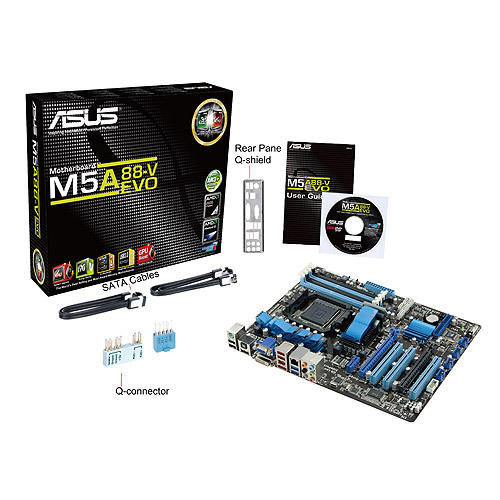

M5A88-V EVO. Maximized performance & energy optimization with Dual Intelligent Processors
- AM3+ CPU Support Ready
- Dual Intelligent Processors. TPU & EPU
- Core Unlocker. Unlock the Potential, Turbocharge your Performance!
- GPU Boost Instant. iGPU Level Up!
- Turbo Unlocker. On demand real-time system tuning
Specifications:
- CPU: AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors. Supports AM3+ 32 nm CPU
- Chipset AMD 880G/SB850
- Memory : 4 x DIMM, Max. 16GB, DDR3 2000(O.C.)/1866(O.C.)/1600(O.C.)/1333/1066 Hz Memory. Dual Channel Memory Architecture
- System Bus: Up to 5.2 GT/s HyperTransport™ 3.0
- Graphic:
• Integrated ATI Radeon™ HD 4250 GPU

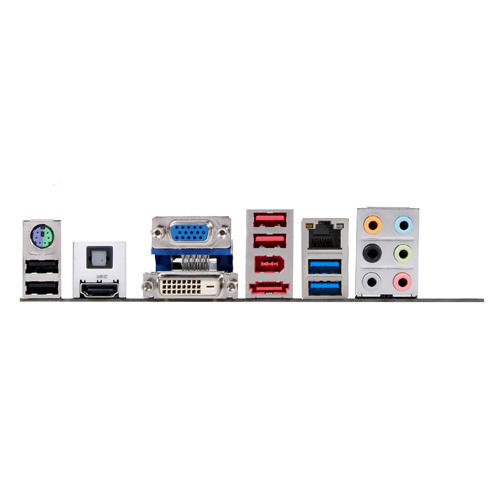

• Multi-VGA output support : HDMI/DVI/RGB ports
Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
Supports RGB with max. resolution 2048 x 1536 @ 85 Hz
• Maximum shared memory of 1024 MB
• Hybrid CrossFireX™ Support *1
• SidePort Memory - onboard 128MB DDR3 1333 memory
• Hardware Decode Acceleration for H.264, VC-1, and MPEG-2
• Blu-ray playback support *2
• Supports DirectX 10.1, OpenGL 2.0, Shader Model 4.1, Universal Video Decoder (UVD) 2.0
- Expansion Slots:
• 1 x PCIe 2.0 x16 (blue)
• 1 x PCIe 2.0 x16 (x4 mode, black)
• 1 x PCIe 2.0 x1
• 3 x PCI
- Storage :
AMD SB850 controller :
• 5 x SATA 6Gb/s port(s), white
• Support Raid 0, 1, 5, 10, JBOD
AMD SB850 controller :
• 1 x eSATA 6Gb/s port(s), red
VIA VT6330 controller :
• 1 x UltraDMA 133/100/66 for up to 2 PATA devices , blue
- LAN: Realtek® 8111E , 1 x Gigabit LAN Controller(s)
- IEEE 1394:
• VIA® VT6330 controller
• 2 x IEEE 1394a port(s)
• (1 at mid-board, 1 at back panel)
- USB Ports:
• AMD SB850 controller : 12 x USB 2.0 port(s) (4 at back panel, black+red, 8 at mid-board)
• ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
