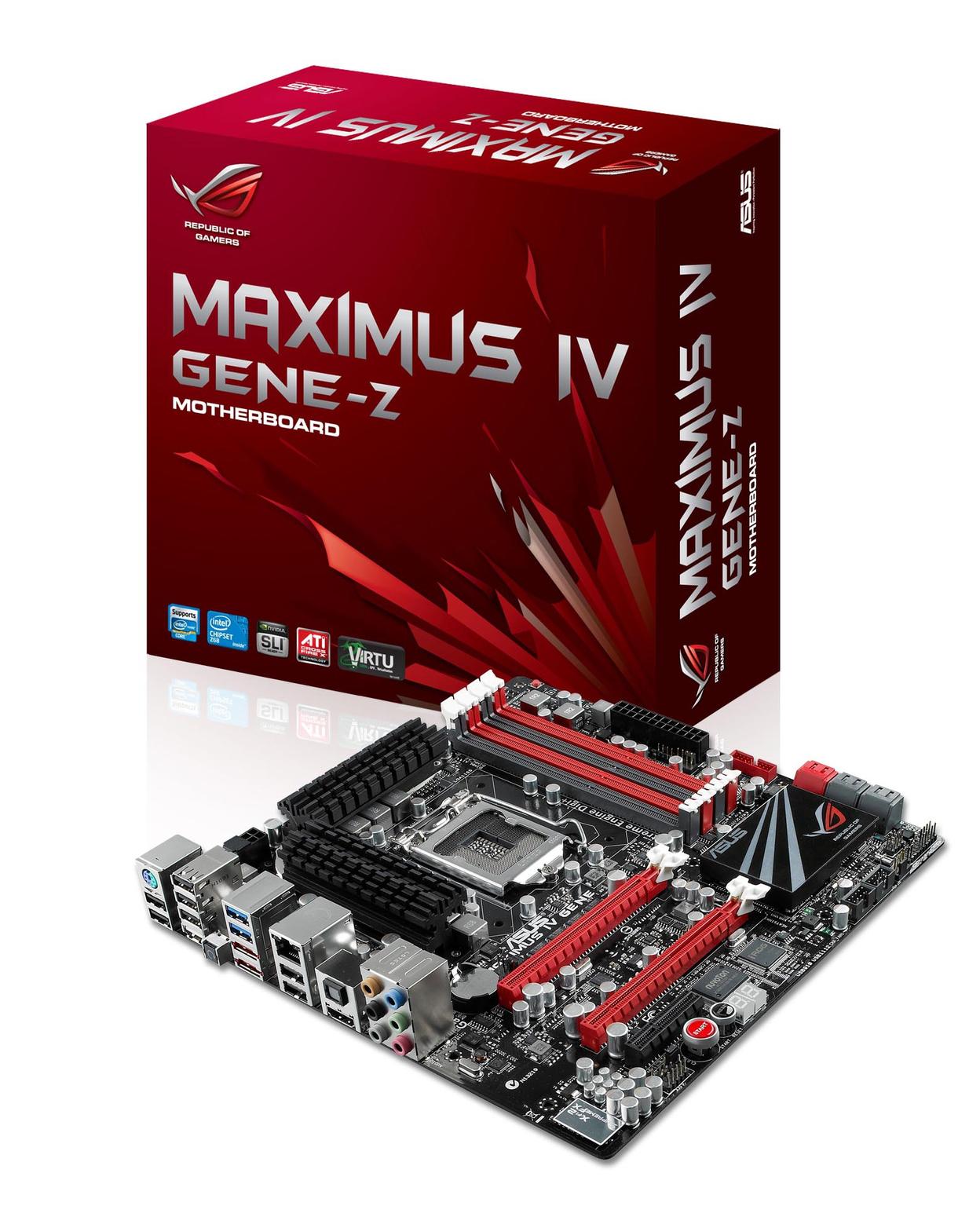

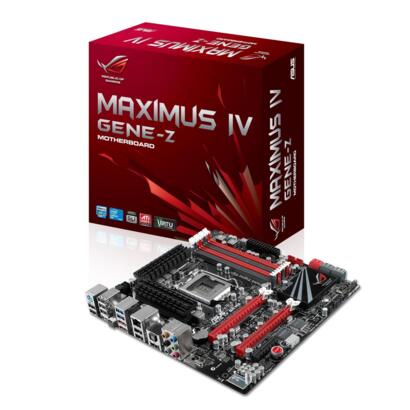

Maximus IV GENE-Z. mATX gaming board with support for Lucid® Virtu™ switchable graphic technology
- LGA1155 socket for 2nd Generation Intel® Core™ i7/Core™ i5/Core™ i3 Processors
- Intel® Z68 Express Chipset
- Dual DDR3 2200 (O.C.)
- Mem TweakIt. Dynamic timing adjustments, DRAM efficiency gauge
- ROG Connect with GPU TweakIt
- SupremeFX X-Fi 2 Built-in
- GameFirst / Intel Gb LAN
Specifications:
- CPU: Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors. Supports Intel® 32 nm CPU
- hipset Intel® Z68
- Memory: 4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333 Hz Non-ECC, Un-buffered Memory. Dual Channel Memory Architecture
- Graphic:
• Integrated Graphics Processor
• VGA output support : HDMI port
Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Multi-GPU Support:
• Supports NVIDIA® SLI™ Technology
• Supports AMD CrossFireX™ Technology
- Expansion Slots:
• 2 x PCIe 2.0 x16 (dual x8)
• 1 x PCIe 2.0 x4
- Storage:
Intel® Z68 chipset :
• 2 x SATA 6Gb/s port(s), red
• 4 x SATA 3Gb/s port(s), gray
• Support Raid 0, 1, 5, 10
• Support Intel® Smart Response Technology
JMicron® JMB362 controller : *1
• 2 x eSATA 3Gb/s port(s), red
- LAN: Intel®, 1 x Gigabit LAN Controller
- USB Ports:
• ASMedia® USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
• Intel® Z68 chipset : 12 x USB 2.0 port(s) (8 at back panel, black, 4 at mid-board)
- Form Factor: uATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
