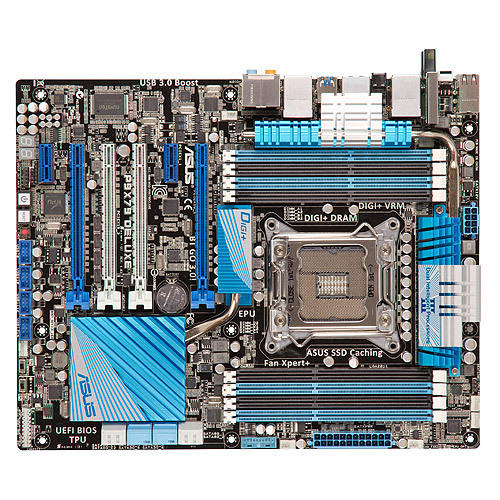

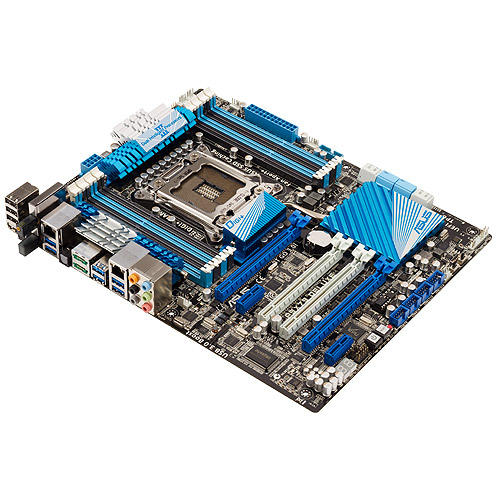

Asus P9X79 DELUXE. All-New Digital Power Control for both CPU and DRAM: Absolute Performance on Intel X79 Platform.
- Dual Intelligent Processors 3 with New DIGI+ Power Control
- Support for up to 64GB of system memory with an 8-DIMM design
- ASUS SSD Caching. 3X faster performance at a click
- UEFI BIOS. Full-scale performance tuning with easy BIOS Interface
- BT GO 3.0! (Bluetooth). Diverse Bluetooth and Wi-Fi Enjoyment, a New Technology Lifestyle
- USB BIOS Flashback - Easy, worry-free USB BIOS Flashback
- 3-Way SLI and Quad-GPU CrossFireX Support!
Specifications:
- CPU: Intel® Socket 2011 for 2nd Generation Core™ i7 Processors. Supports Intel® Turbo Boost Technology 2
- Chipset Intel® X79
- Memory: 8 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory. Quad Channel Memory Architecture
- Multi-GPU Support:
• Supports NVIDIA® 3-Way SLI™ Technology
• Supports AMD Quad-GPU CrossFireX™ Technology
- Expansion Slots:
• 3 x PCIe 3.0/2.0 x16 (dual x16 or x16, x8, x8) *1
• 1 x PCIe 3.0/2.0 x16 (x8 mode) *1
• 2 x PCIe 2.0 x1
- Storage:
Intel® X79 chipset :
• 2 x SATA 6Gb/s port(s), white
• 4 x SATA 3Gb/s port(s), blue
• Support Raid 0, 1, 5, 10
Marvell® PCIe 9128 controller :
• 2 x SATA 6Gb/s port(s), white
ASMedia® ASM1061 controller :
• 2 x Power eSATA 6Gb/s port(s), green
- LAN:
• Realtek® 8111E , 1 x Gigabit LAN Controller(s)
• Intel® 82579V, 1 x Gigabit LAN Controller(s)
• Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
- Wireless Data Network: Wi-Fi 802.11 b/g/n
- Bluetooth:
• Bluetooth V3.0+HS
• ASUS BT GO! Utility

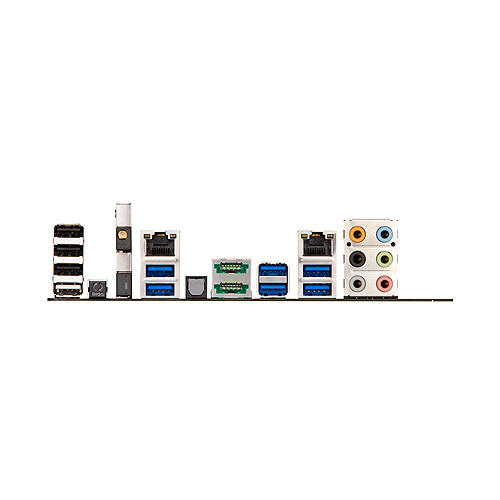

- USB Ports:
• ASMedia® USB 3.0 controller : *2, 8 x USB 3.0 port(s) (6 at back panel, blue, 2 at mid-board)
• Intel® X79 chipset : 12 x USB 2.0 port(s) (4 at back panel, black+white, 8 at mid-board)
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
