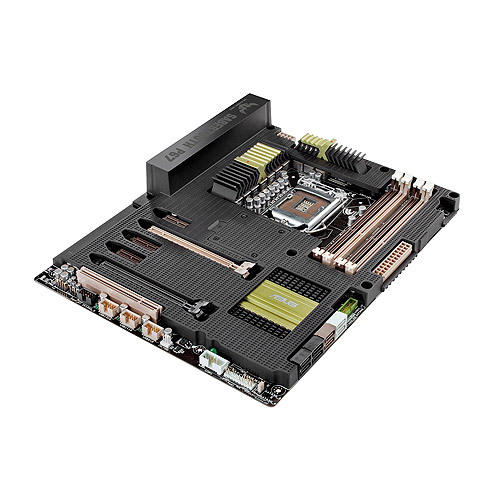

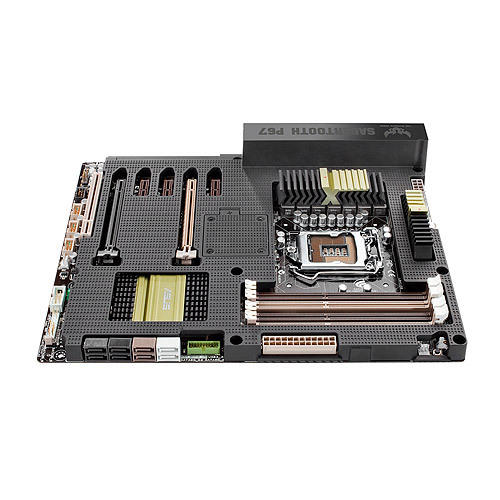

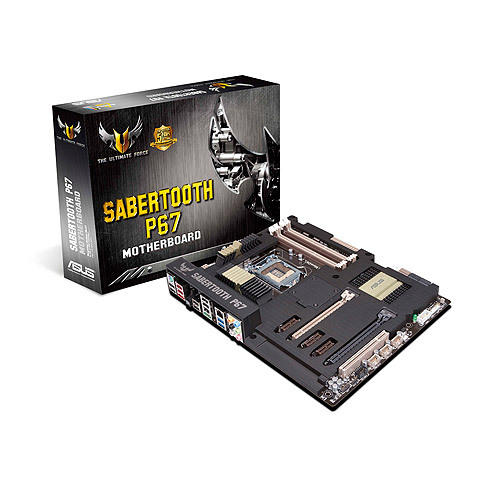

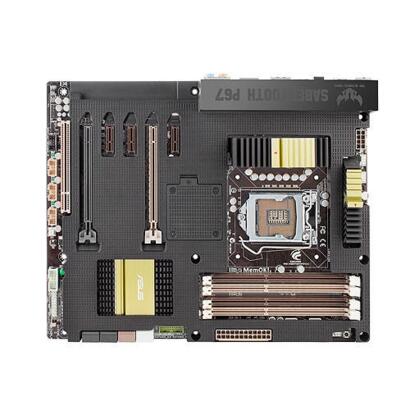

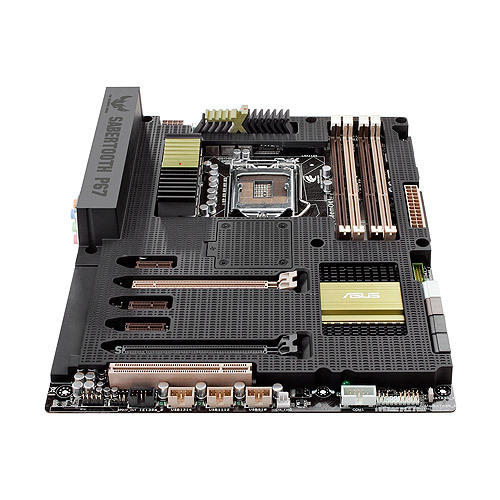

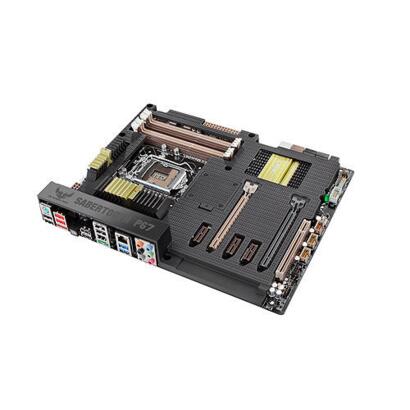

SABERTOOTH P67. Intel P67 Based Military-grade Motherboard with Thermal Armor.
- Intel® LGA1155 socket for Intel® 2nd Generation Core™ i7/ Core™ i5/ Core™ i3 Processors
- Intel® P67 Express Chipset
- TUF Thermal Armor. Total Airflow-Boosting Heat Dissipation
- TUF Thermal Radar. Real Time Temp Detection and Heat Removal
- TUF Components [Alloy Choke, Cap. & MOSFET; Certified by Military-standard], Certified for Tough Duty
- E.S.P. [Efficient Switching Power Design], Optimal power efficiency for key components
Specifications:
- CPU: Intel® Socket 1155 for Intel® 2nd Generation Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Support Intel® 32nm CPU
- Chipset: Intel® P67 Express Chipset
- Memory: 4 x DIMM, Max. 32 GB, DDR3 1866/1800/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
- Expansion Slots:
• 2 x PCIe 2.0 x16 (single at x16 or dual at x8/x8 mode)
• 3 x PCIe 2.0 x1
• 1 x PCI
- Multi-GPU Support:
• Supports NVIDIA® Quad-GPU SLI™ Technology
• Supports ATI® Quad-GPU CrossFireX™ Technology
- Storage:
Intel® P67 Express Chipset
• 2 xSATA 6.0 Gb/s ports (brown)
• 4 xSATA 3Gb/s ports (black)
• Intel® Rapid Storage Technology Support RAID 0,1,5,10
Marvell® PCIe SATA 6Gb/s controller
• 2 xSATA 6Gb/s ports (gray)
JMicron® JMB362 SATA controller
• 1 xPower eSATA 3Gb/s port (green)
• 1 xExternal SATA 3Gb/s port (red)
- LAN: Intel® 82579 Gigabit LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
- IEEE 1394: VIA® VT6308P controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)
- USB:
• NEC USB 3.0 controllers: 4 x USB 3.0/2.0 ports (2 ports at mid-board for front panel support; 2 ports at back panel [blue])
• Intel® P67 Express Chipset: 14 x USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
