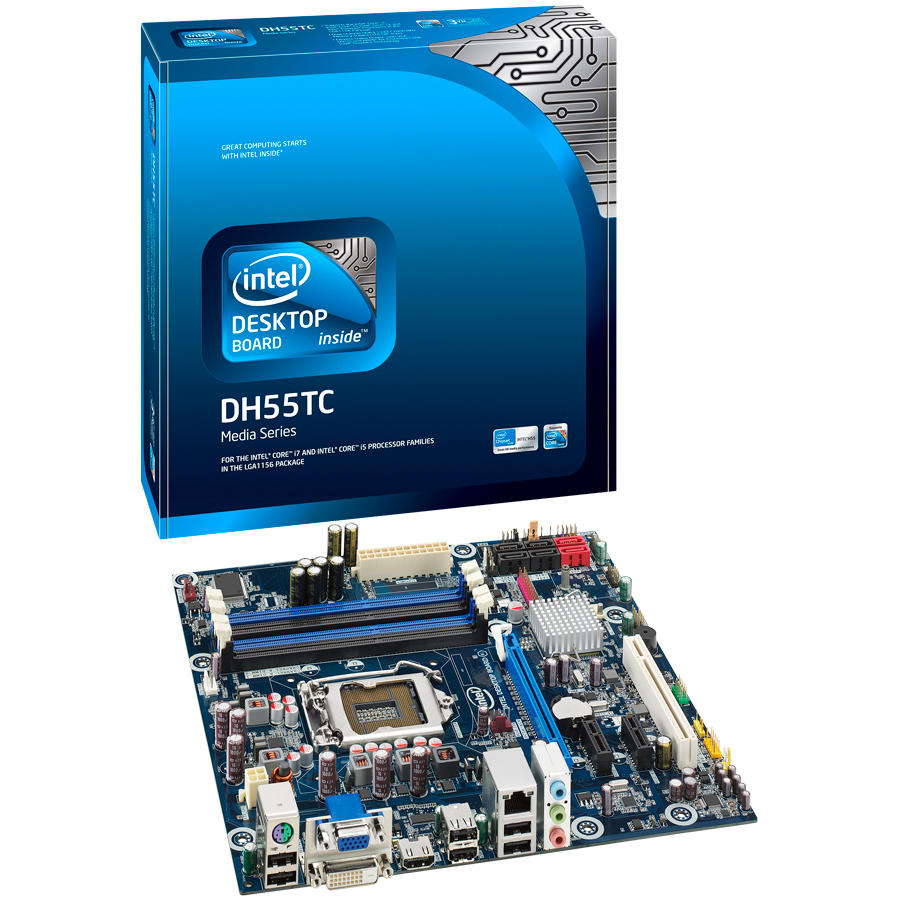

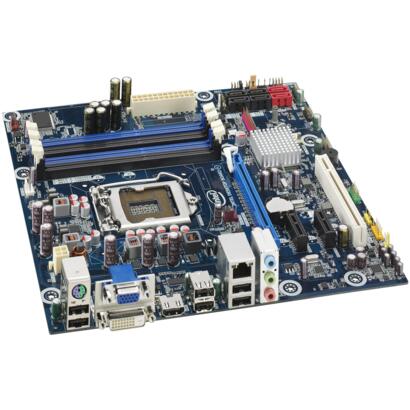

The Intel Desktop Board DH55TC is an Intel® H55 Express Chipset based desktop product in uATX form factor. It offers premium features such as the support of dual-channel DDR3-1333MHz memory with four slots up to 16GBp, Intel® High Definition AudioS with 5.1 surround sound, and integrated Intel PRO 10/100/1000 Network Connection in a new low power design.
Specifications:
- Form factor: uATX
- BIOS ID string: TCIBX10H.86A
- Processor:
At product launch, this desktop board supports:
• Intel® Core™ i7 processors in an LGA1156 socket
• Intel® Core™ i5 processors in an LGA1156 socket
• Intel® Core™ i3 processors in an LGA1156 socket
• Intel® Pentium® processors in an LGA1156 socket
- Memory:
• Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
• Support for DDR3 1333 /1066 MHz DIMMs
• Support for up to 16 GB of system memory
- Chipset: Intel® H55 Express Chipset
- Audio: Intel® High Definition Audio subsystem in the following configuration: 8-channel (5.1+ 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek ALC888S* audio codec
- LAN support: Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82578DC Gigabit Ethernet Controller
- Peripheral interfaces:
• Up to twelve USB 2.0 ports
• Six Serial ATA 3.0 Gb/s ports with two ports compatible with eSATA dongles
• One serial port header
• One parallel port header
• One back panel PS/2 connector
- Expansion capabilities:
• One PCI Express* 2.0 x 16 bus add-in card connector
• Two PCI Express 2.0 x 1 connectors
• One PCI Conventional bus connector
