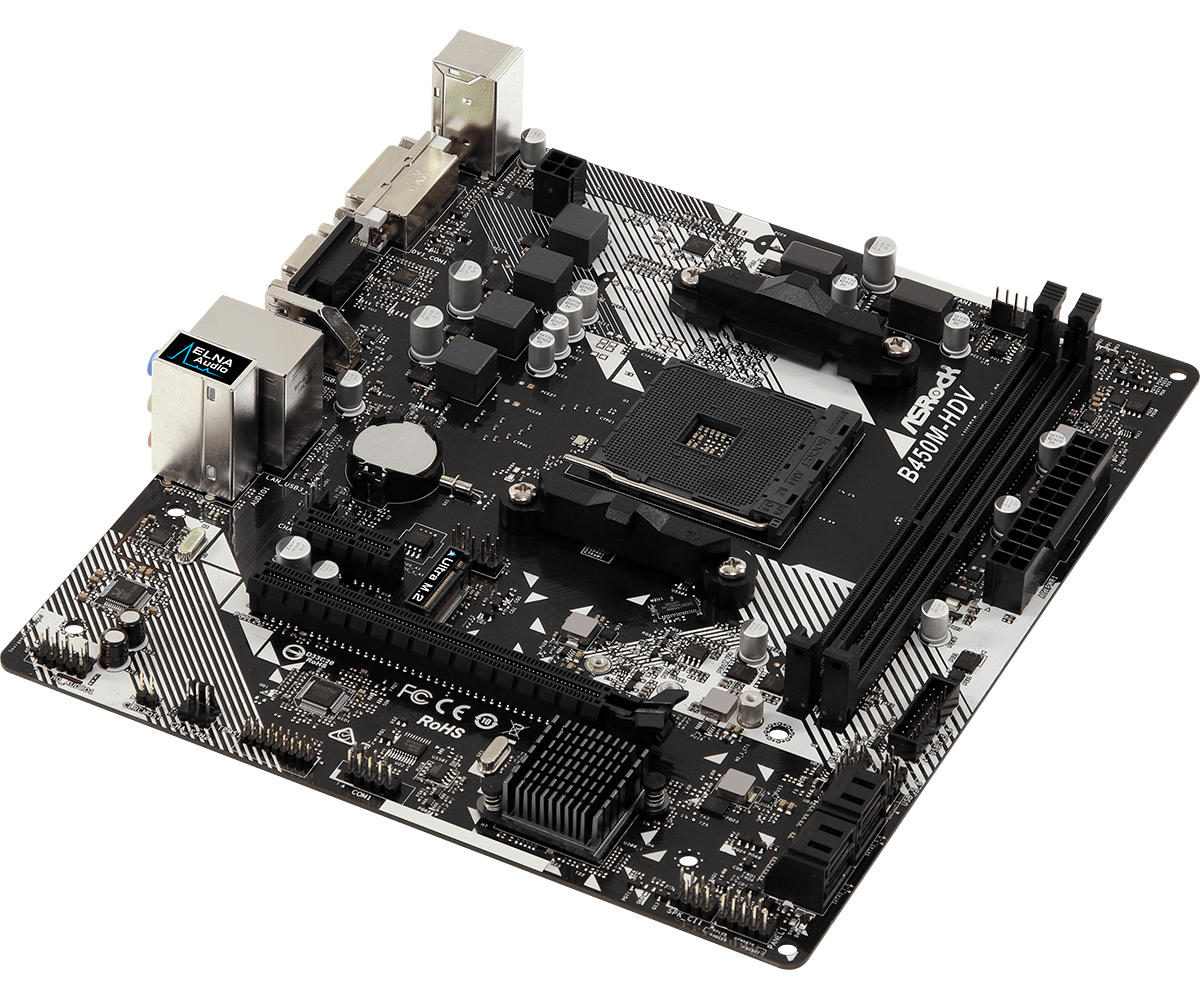

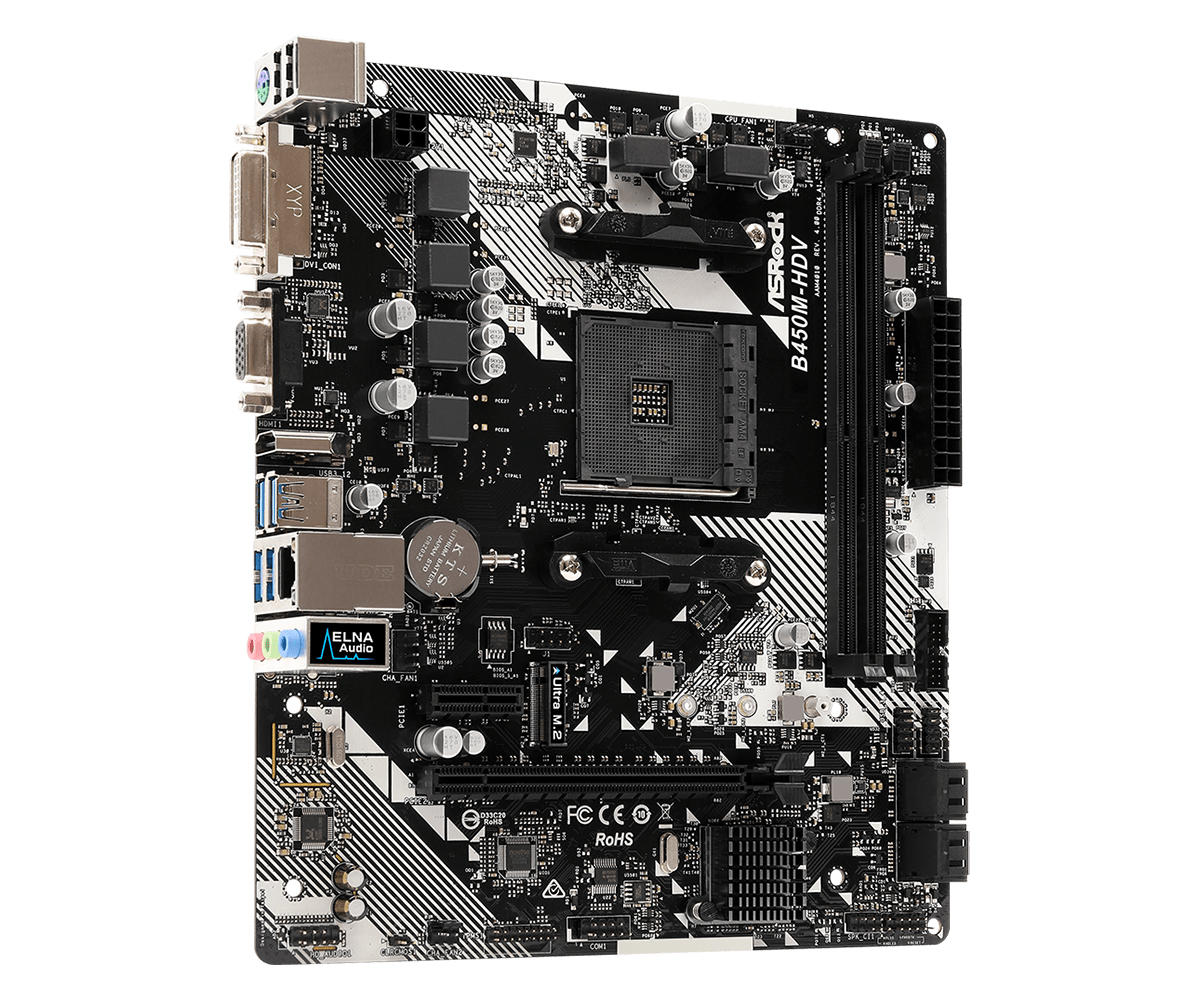

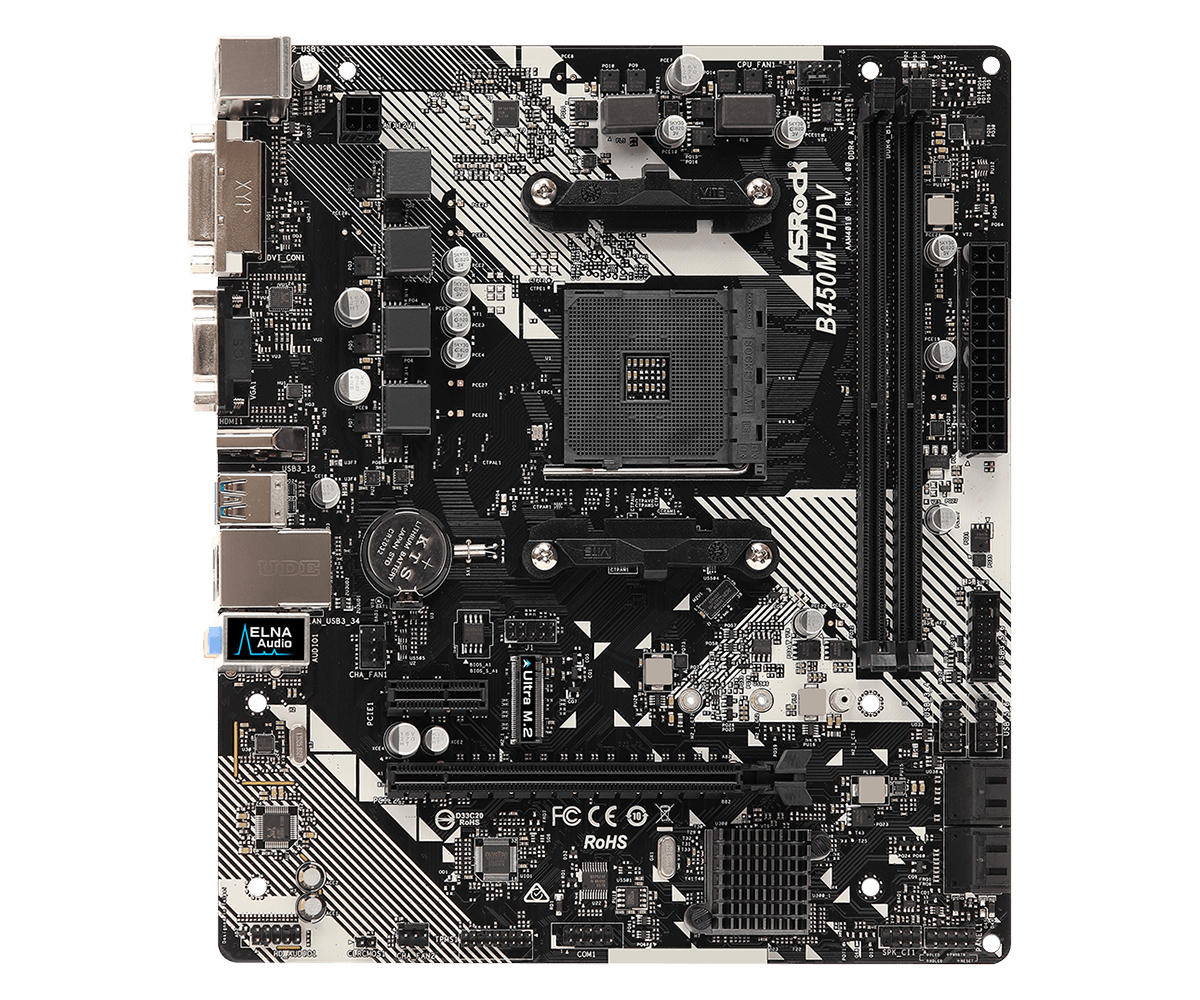

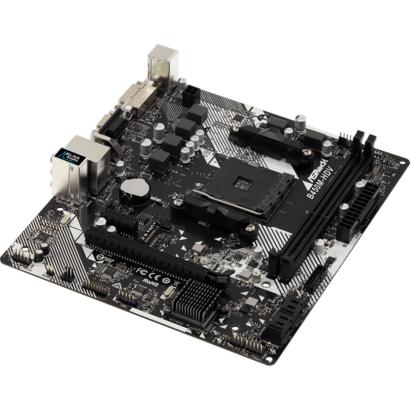

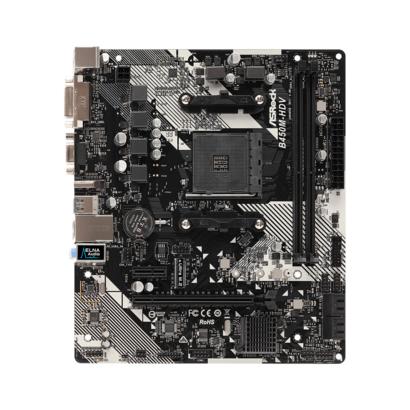

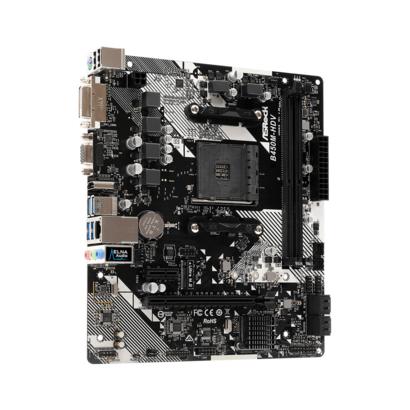

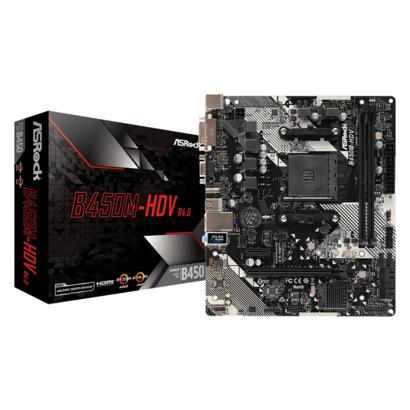

AsRock B450M-HDV R4.0, DDR4, HDMI, PCI-E, Soc AM4

Op voorraad. Voor 17:00 uur besteld is morgen in huis of direct afhalen.
  • 30 dagen bedenktijd
  • Achteraf betalen via AfterPay
  • Gratis verzending vanaf 50 euro
  • Niet goed, geld terug
  • Klantenservice 010 44 55 400


Ontvang een email wanneer dit product op of onder een gewenste prijs komt.


Processor socket: AM4
Chipset moederbord: AMD B450
Max werkgeheugen: 32GB


Artikelcode: MOBOARB5420
Partnummer: 90-MXB9N0-A0UAYZ
EANcode: 4717677337617
Garantietermijn: 1jr
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Digi Power
This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.


Audiochip: Realtek ALC887
Audio output channels: 7.1 kanalen
Certificering: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Moederbord chipset familie: AMD
Moederbord form factor: Micro ATX
Chipset moederbord: AMD B450
Component voor: PC
Ondersteunt Windows: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64


Ondersteunde types opslag-drives: HDD,SSD
Soorten RAID: 0,1,10
Ondersteunde opslagstationinterfaces: M.2, PCI Express 3.0, SATA III

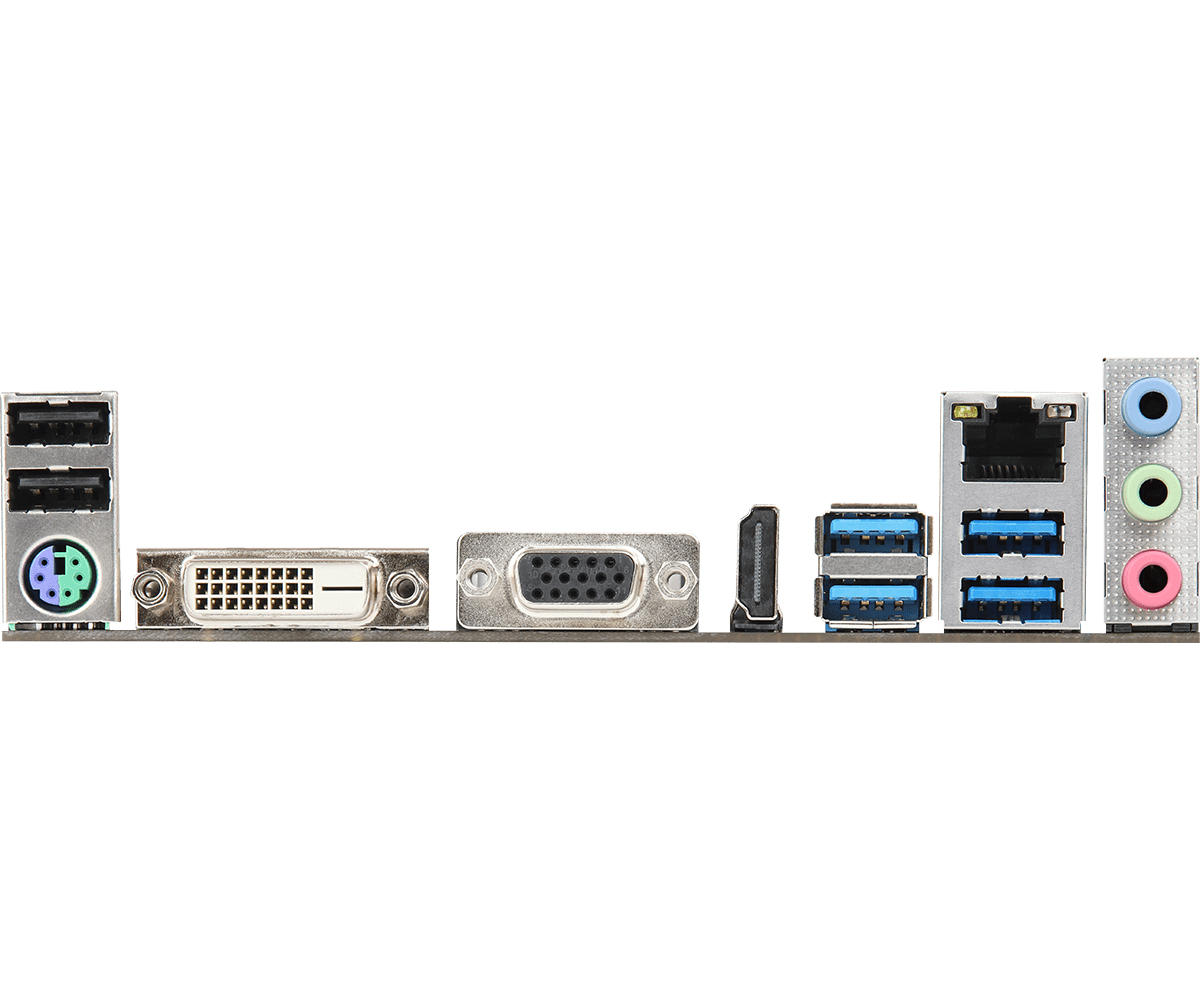

Aansluitingen achterzijde

Aantal Ethernet LAN (RJ-45)-poorten: 1
PS/2 poort(en): 1
Hoofdtelefoonuitgangen: 1
Aantal HDMI-poorten: 1
Aantal USB 2.0-poorten: 2
Microfoon, line-in ingang:
DVI-D poorten: 1
VGA (D-Sub)poort(en): 1
Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 4


Clear CMOS jumper:
ACPI version: 5.1
Systeem Management BIOS (SMBIOS) versie: 2.3
Grootte BIOS-geheugen: 128 Mbit


Ingebouwde grafische adapter:
DirectX versie: 12.0
Maximum resolutie: 4096 x 2160 Pixels
Grafische adapter-familie: AMD
Ondersteuning voor parallel processing: Niet ondersteund


Compatibele processors: AMD Ryzen
Processor socket: AM4
Processorfabrikant: AMD

Interne aansluitingen

TPM connector:
COM aansluitingen: 1
Aansluitingen voor behuizingsventilatoren: 2
Aansluiting voor audiopaneel aan voorzijde:
Chassis intrusion aansluiting:
USB 3.0 (3.1 Gen 1)-aansluitingen: 1
Aansluiting voor CPU koeler:
12V vermogen-connector:
USB 2.0 aansluitingen: 2
Aantal SATA III connectors: 4

Inhoud van de verpakking

Inclusief hulpprogramma's:
Meegeleverde kabels: SATA
Meegeleverde software: AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Meegeleverde drivers:
Snelle installatiehandleiding:


PCI Express x1 (Gen 2.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 3


Supported memory clock speeds: 2133,2400,2667,2933,3200 MHz
Max werkgeheugen: 32GB
Type geheugen: DDR4
Geheugen slots type: DIMM
Aantal geheugenslots: 2
Niet gebufferd geheugen:
Geheugen kanaal: Dual


LAN controller: Realtek RTL8111H
Ethernet LAN:
Ethernet interface type: Gigabit Ethernet

Gewicht en omvang

Breedte: 230 mm
Diepte: 201 mm
