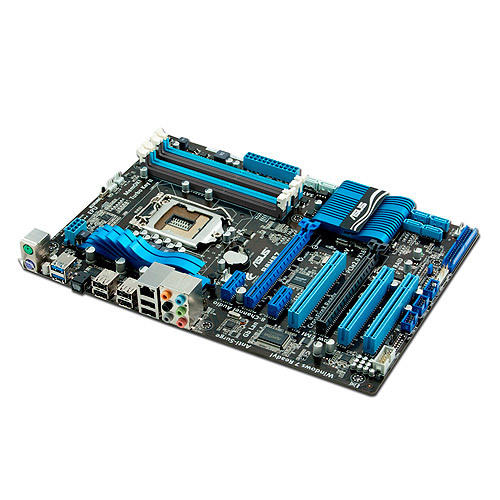

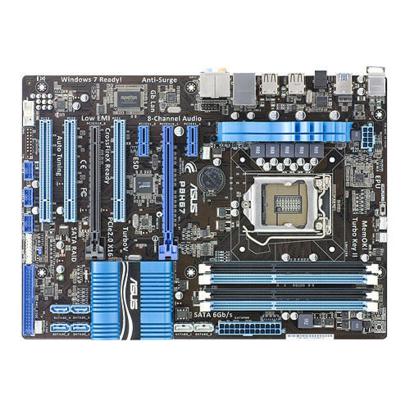

Asus P8H67 V3, CF, USB3.0, SATA 6Gb/s, D-DDR3, PCI-E, S1155

Versie 3, vernieuwde Sandy Bridge Chipset

P8H67. REV 3.0 - New H67 B3 Revision.
Green Motherboard with Real-Time O.C. Tunings on Intel H67 Platform
- Protect 3.0. Protect the Earth & the system & you
- EFI BIOS. EZ Mode - Flexible & Easy BIOS Interface
- AI Suite II. One-stop Access to Innovative ASUS Features
- MemOK! Any Memory is A-OK!
- True USB 3.0 & SATA 6Gb/s Support. Fully unleash performance

Specifications:
- CPU: Intel® Socket 1155 for Intel® 2nd Generation Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Support Intel® 32nm CPU
- Chipset: Intel® H67 Express Chipset
- Memory: 4 x DIMM, Max. 32 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory. Dual Channel memory architecture.
- Expansion Slots:
• 1 x PCIe 2.0 x16 (blue, single at x16 mode)
• 1 x PCIe 2.0 x16 (black, at x4 mode, compatible with PCIe x 1 and PCIe x 4)
• 2 x PCIe 2.0 x1
• 3 x PCI
- Multi-GPU Support: Supports ATI® Quad-GPU CrossFireX™ Technology
- Storage:
Intel® H67 Express Chipset
• 4 xSATA 3.0 Gb/s ports
• 2 xSATA 6.0 Gb/s ports
• Intel® Rapid Storage technology Support RAID 0,1,5,10
VIA VT6415 PATA controller
• 1 xUltraDMA 133/100 for up to 2 PATA devices
- LAN: Realtek® 8111E Gigabit LAN
- USB:
• ASMedia® USB 3.0 controller: 2 x USB 3.0/2.0 ports (blue)
• Intel® H67 Express Chipset: 12 x USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at the back panel)
- Form Factor: ATX Form Factor 12 inch x 8.7 inch ( 30.5 cm x 22.1 cm )
