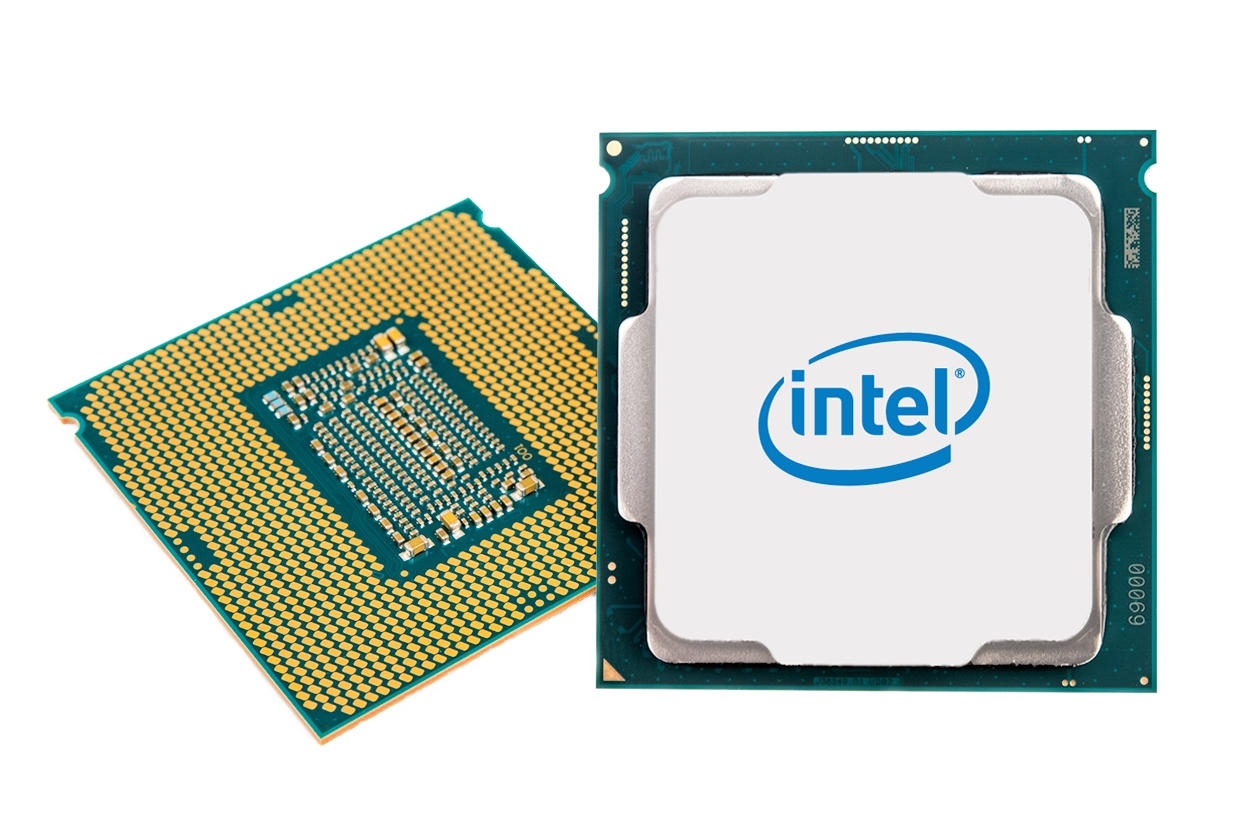

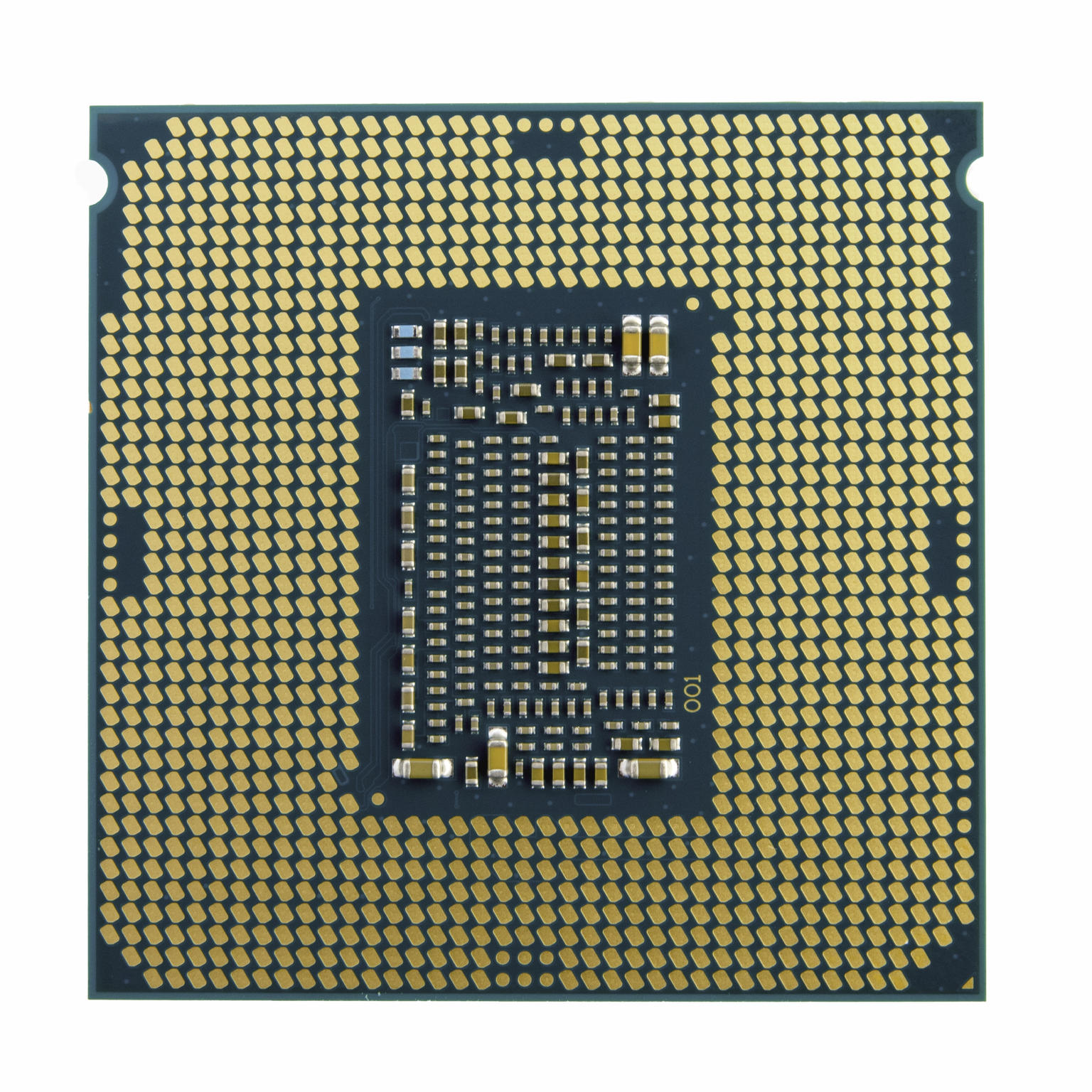

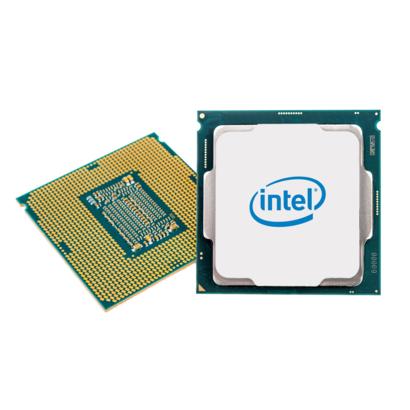

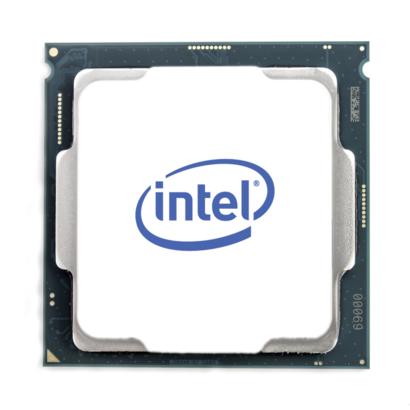

Intel Hexa Core i5-9400 (2,90GHz) 9MB (UHD 630) Box Soc1151

Tijdelijk niet leverbaar

Omdat we niet precies weten wanneer we weer nieuwe voorraad binnen krijgen, is het tijdelijk niet mogelijk dit product online te bestellen. Tip: laat je e-mailadres achter in het voorraadwekker blok hieronder, zodra we dan weer nieuwe voorraad hebben krijg je automatisch een e-mail van ons.

Voorraadwekker

Ontvang een email wanneer dit product direct uit voorraad leverbaar is.

Specificaties

Processor: Intel Core i5
Processor socket: 1151
Processor Frequentie: 4100MHz
processorkernen: 6
On-board graphics: Intel UHD Graphics 630

Productinformatie:

Artikelcode: CPU9I59400
Partnummer: BX80684I59400
EANcode: 5032037140225
Garantietermijn: 3jr
Intel® Optane™ Memory Supported

Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

Intel® Turbo Boost Technology

Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® Virtualization Technology (VT-x)

Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d)

Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® VT-x with Extended Page Tables (EPT)

Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Intel® 64

Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Instruction Set

An instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel’s instruction set this processor is compatible with.

Instruction Set Extensions

Instruction Set Extensions are additional instructions which can increase performance when the same operations are performed on multiple data objects. These can include SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions).

Idle States

Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep® Technology

Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Thermal Monitoring Technologies

Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.

Intel® Identity Protection Technology

Intel® Identity Protection Technology is a built-in security token technology that helps provide a simple, tamper-resistant method for protecting access to your online customer and business data from threats and fraud. Intel® IPT provides a hardware-based proof of a unique user’s PC to websites, financial institutions, and network services; providing verification that it is not malware attempting to login. Intel® IPT can be a key component in two-factor authentication solutions to protect your information at websites and business log-ins.

Gewicht en omvang

Verpakkingsgrootte processor: 37.5 x 37.5 mm

Geheugen

Maximaal intern geheugen ondersteund door processor: 128GB
Geheugentypen ondersteund door processor: DDR4
Geheugenkanalen ondersteund door processor: Dual
ECC ondersteund door processor:
Klokgeheugen-snelheden ondersteund door processor: 2666 MHz
Geheugenbandbreedte ondersteund door de processor ( max): 41,6 GB/s

Grafisch

Aantal displays ondersteund door on-board grafische adapter: 3
Verversingsfrequentie ingebouwde grafische adapter bij maximale resolutie (HDMI): 24 Hz
Graphics aan boord maximale resolutie adapter (DisplayPort ): 4096 x 2304 Pixels
On-board graphics: Intel UHD Graphics 630
Ingebouwde grafische adapter:
Refresh rate op maximale resolutie (eDP - Integrated Flat Panel): 60 Hz
Maximaal geheugen ingebouwde grafische adapter: 64GB
Videokaart: On-board videokaart
4K-ondersteuning:
Maximale resolutie (eDP - Integrated Flat Panel): 4096 x 2304 Pixels
Aparte grafische adapter:
Grafische adapter refresh rate on-board bij maximale resolutie (DisplayPort ): 60 Hz
On-board grafische adapter ID: 0X3E98/x92
Basisfrequentie ingebouwde grafische adapter: 350 MHz
On-board grafische adapter OpenGL versie: 4.5
Maximale resolutie ingebouwde grafische adapter (HDMI): 4096 x 2304 Pixels
Graphics on-board -adapter dynamische frequentie (max): 1050 MHz
On-board grafische adapter DirectX-versie: 12.0

Kenmerken

PCI Express configuraties: 1x8+2x4,1x16,2x8
Ingebouwde opties beschikbaar:
Thermal Monitoring Technologies:
Execute Disable Bit:
Idle States:
CPU configuratie (max): 1
Schaalbaarheid: 1S
Marktsegment: DT
Ondersteunde instructie sets: AVX 2.0,SSE4.1,SSE4.2
PCI Express slots versie: 3.0
Thermal solution specificatie: PCG 2015C
Maximaal aantal PCI Express-lijnen: 16

Processor

Processor cache: 9MB
Processor cache type: Smart Cache
processorkernen: 6
Processor lithografie: 14 nm
Processor operating modes: 64-bit
Processor Frequentie: 4100MHz
Box:
Bus type: DMI3
Processormodel: i5-9400
Processor socket: 1151
Processor aantal threads: 6
ARK ID processor: 134898
Component voor: PC
Systeembus: 8 GT/s
Frequentie van processor: 2,9 GHz
Processorserie: 9th Generation Intel Core i5 Processors
Maximale turbofrequentie van processor: 4,1 GHz
Processor: Intel Core i5
Codenaam processor: Coffee Lake

Technische details

Merknaam processor: 9th Gen Intel Core i59th Gen Intel Core i5 Processor
Lanceringsdatum: Q1'19
Laatste wijziging: 63903513
Maximale resolutie & verversingsfrequentie (DisplayPort): 4096x2304@60Hz
Bandbreedte bus: 8
Maximale resolutie & verversingsfrequentie (HDMI): 4096x2304@24Hz
Processorcache: 9216 KB
Productfamilie: Intel Core Processors
Type buseenheden: GT/s
Maximale resolutie & verversingsfrequentie (Integrated Flat Panel): 4096x2304@60Hz
Status: Launched
Producttype: Processor

Overige specificaties

Maximaal intern geheugen: 131072 MB

Eisen aan de omgeving

Tjunction: 100 °C

Energie

Videokaart TDP: 65 W
