Shuttle XPC Cube SH170R6, DDR4/M.2/Soc 1151

Niet meer leverbaar.

Helaas dit product is niet meer leverbaar, wij doen ons best je een alternatief product aan te bieden. Let op: het alternatief kan afwijken qua prijs en/of specificaties.


On-board graphics
Type werkgeheugen DDR4
Max werkgeheugen 64GB
Geheugenslots 4


Artikelcode BAREBSHCB130
Partnummer SH170R6
EANcode 887993000435
Garantietermijn 2jr

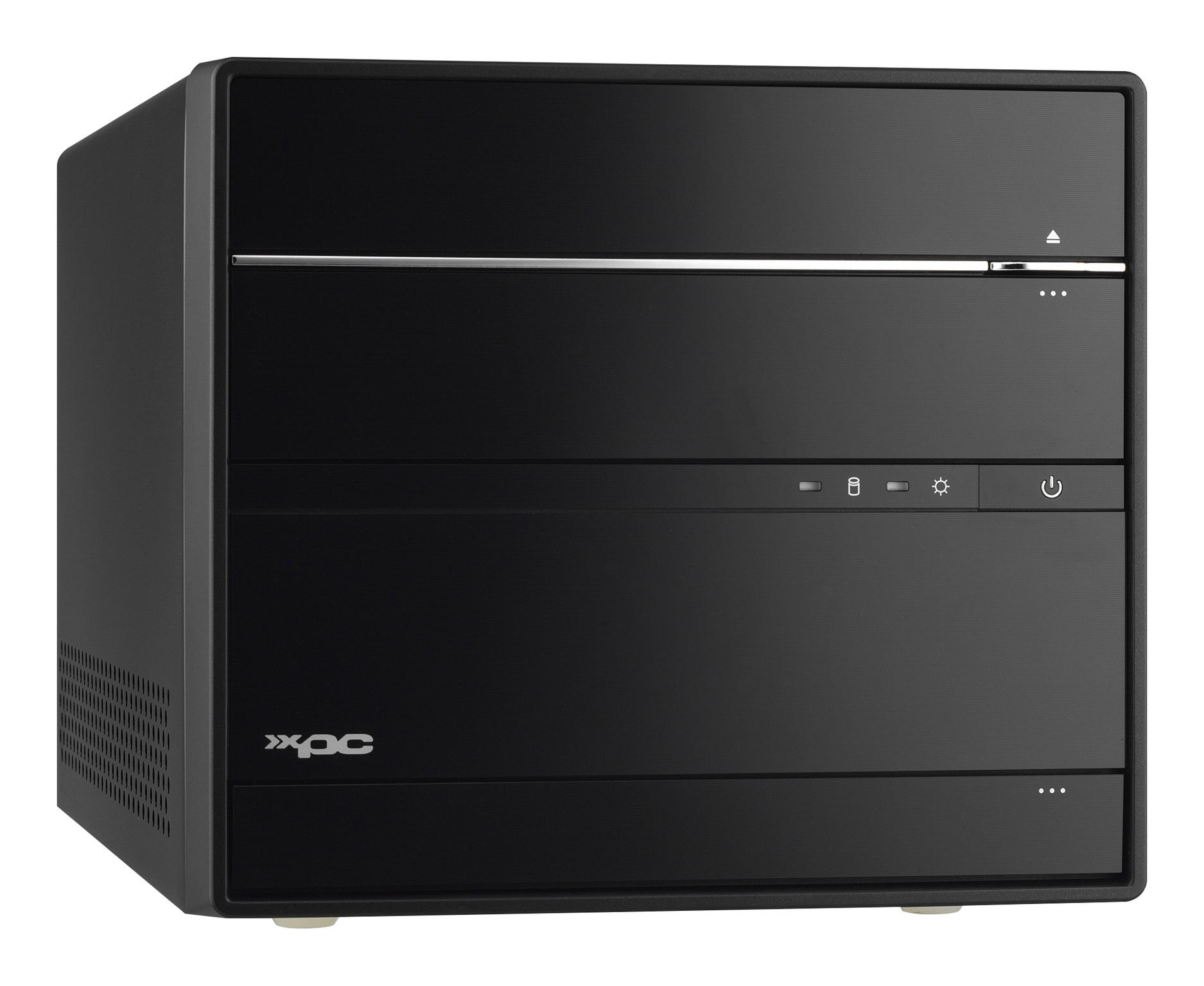

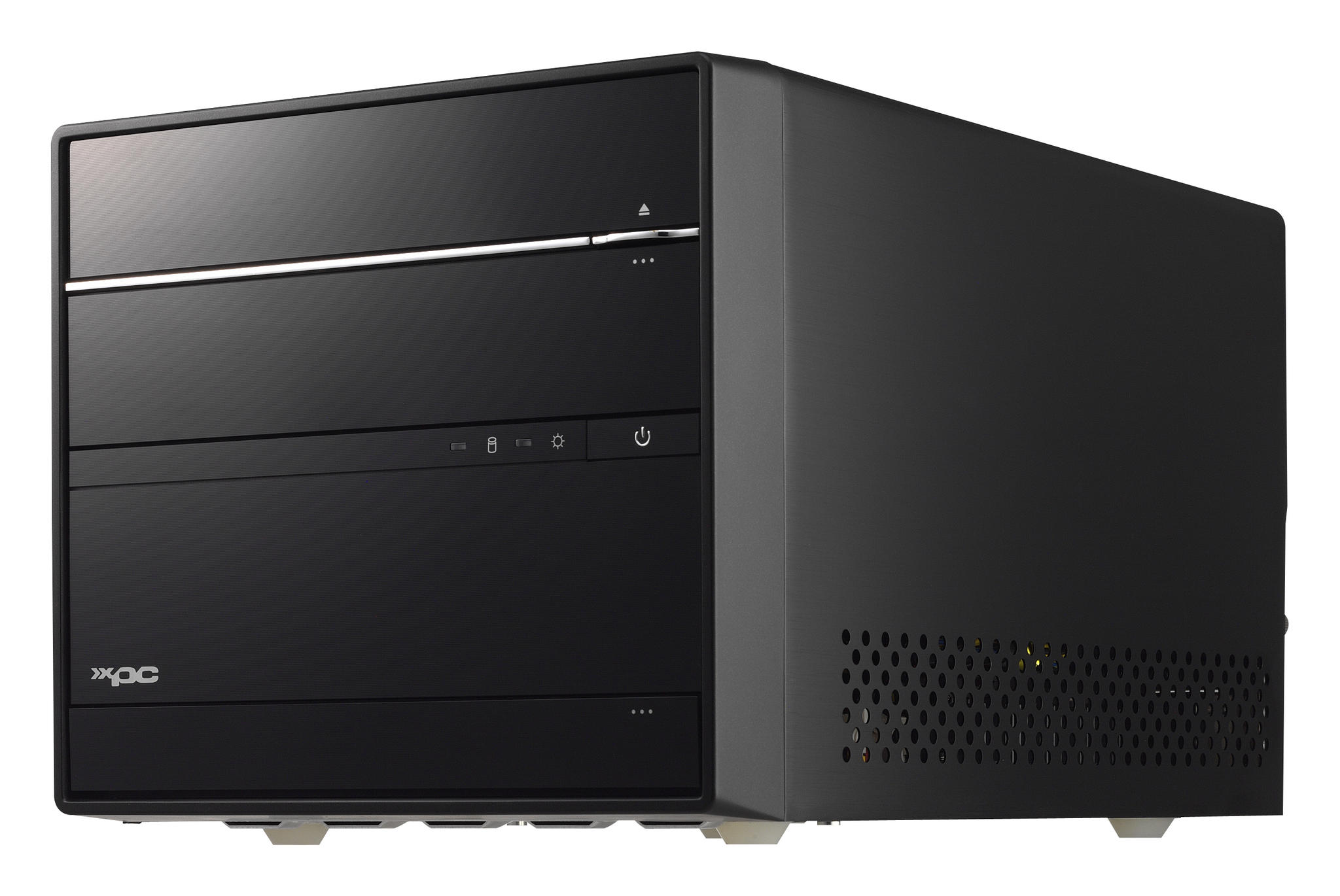

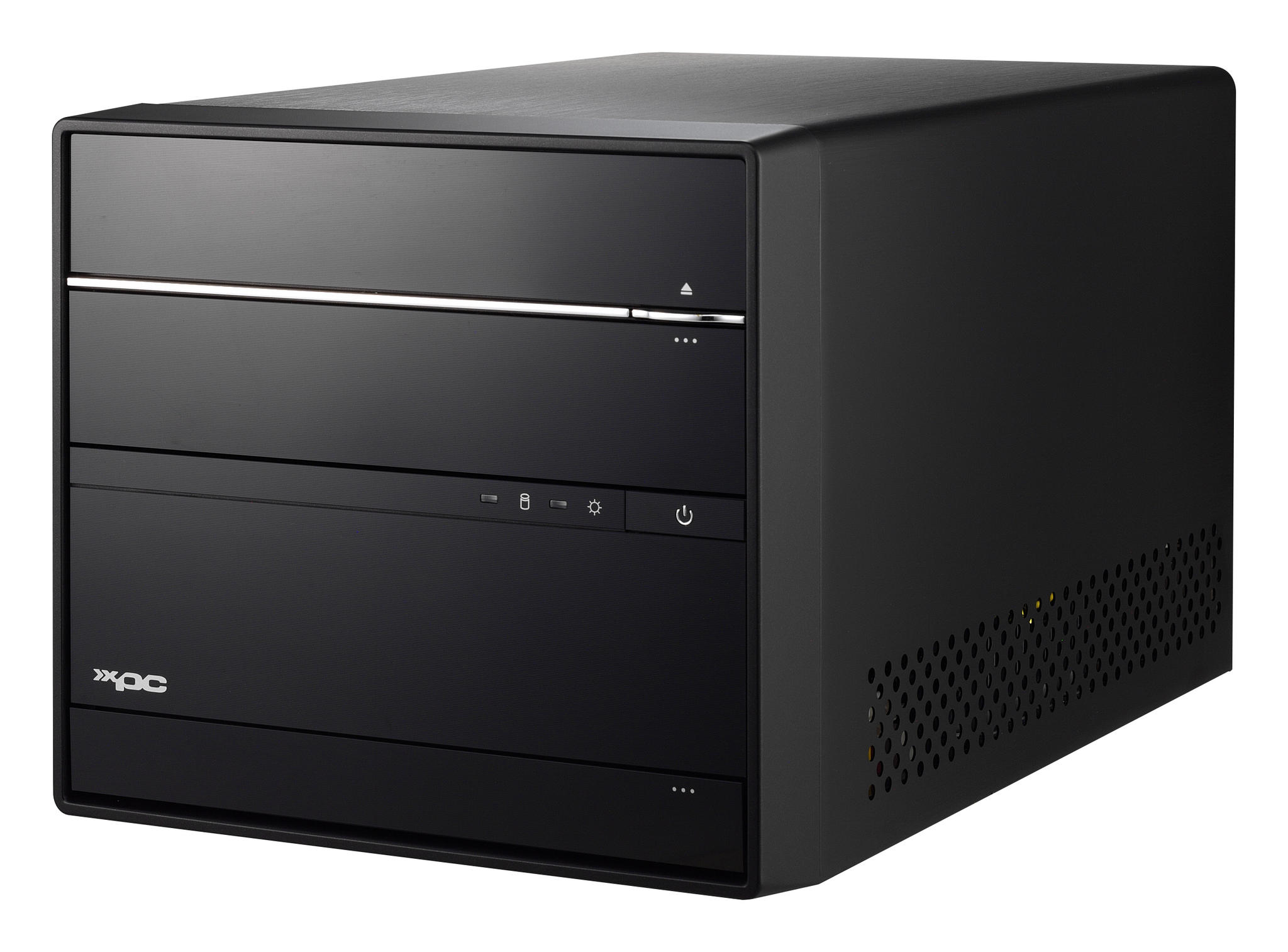

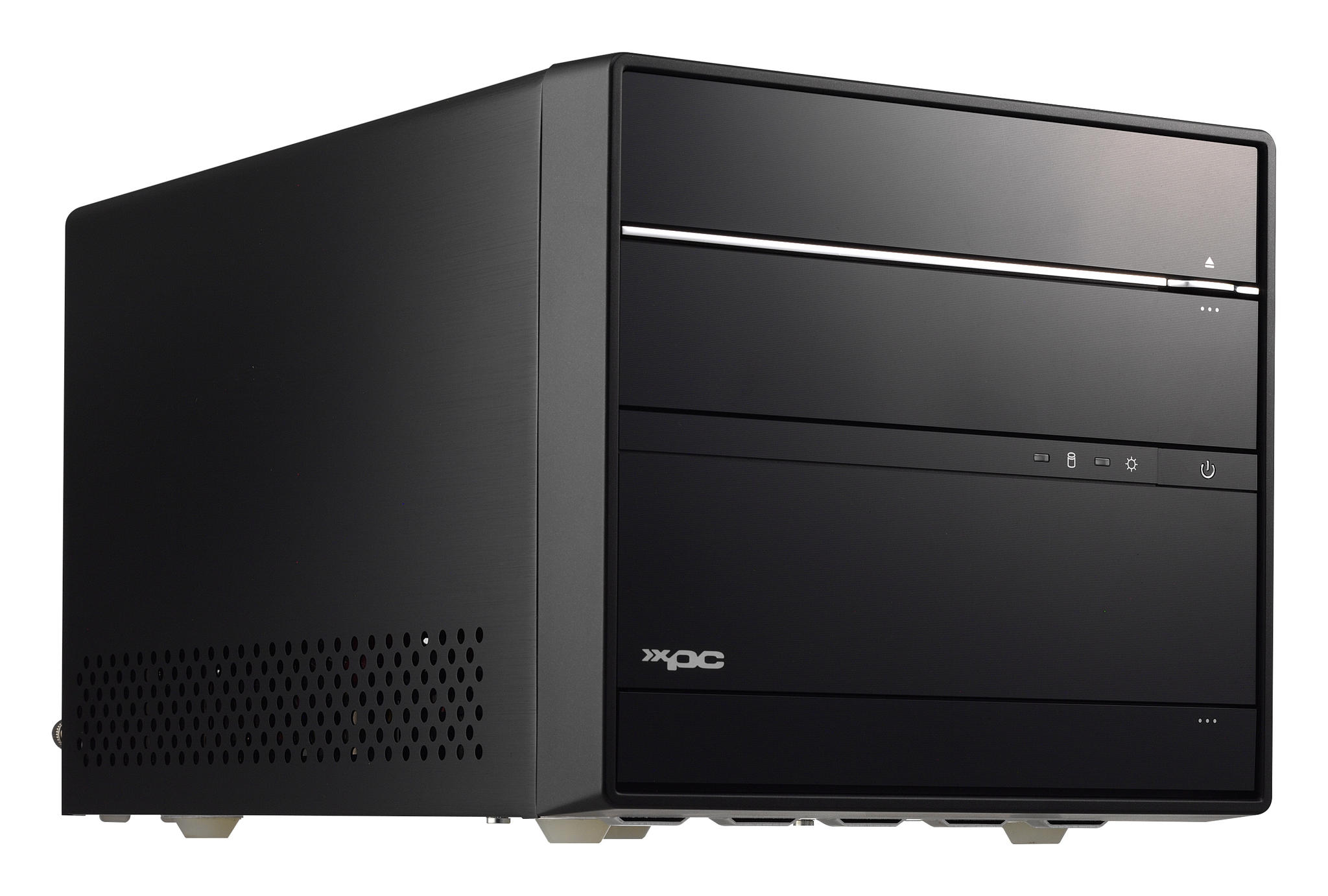

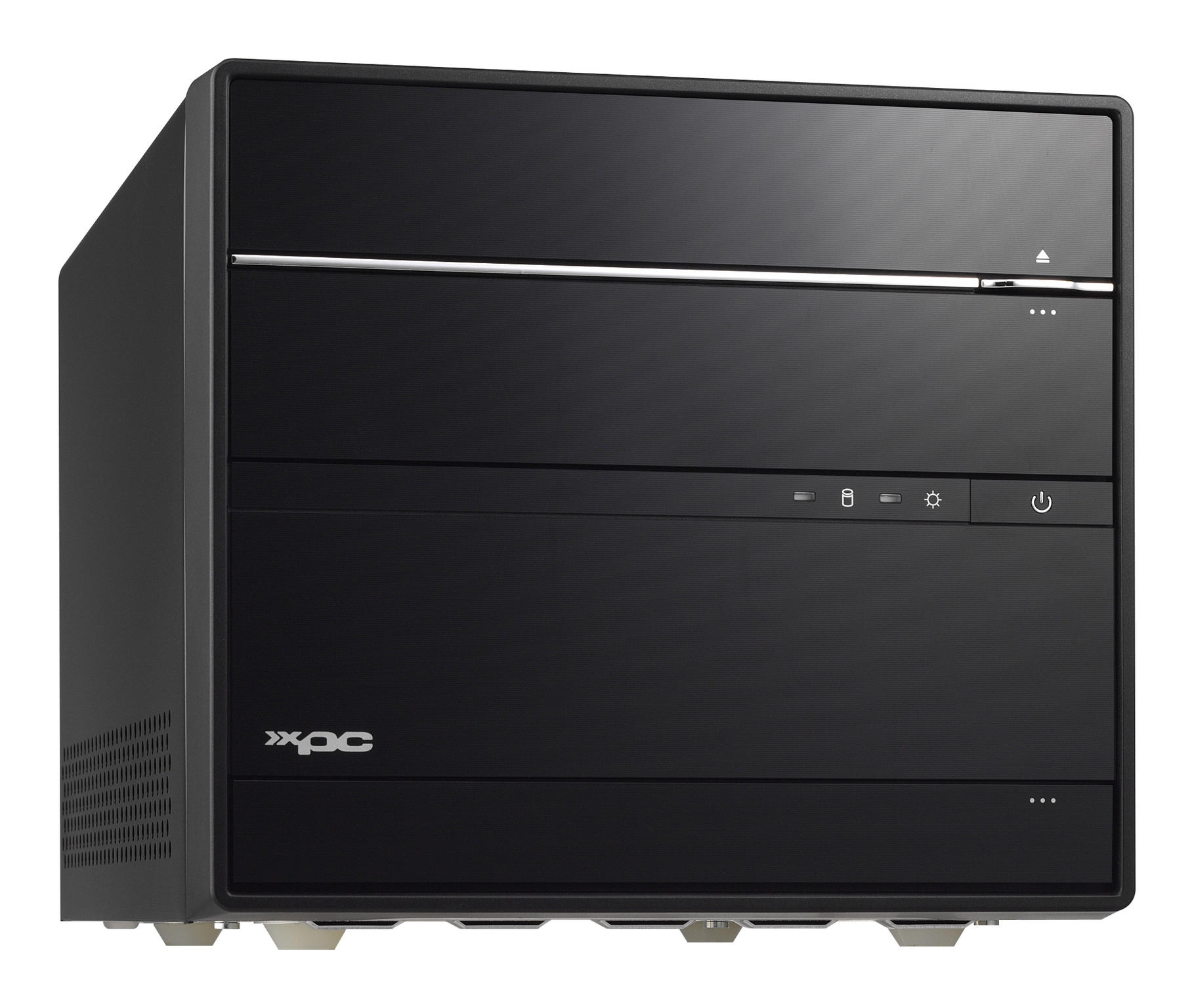

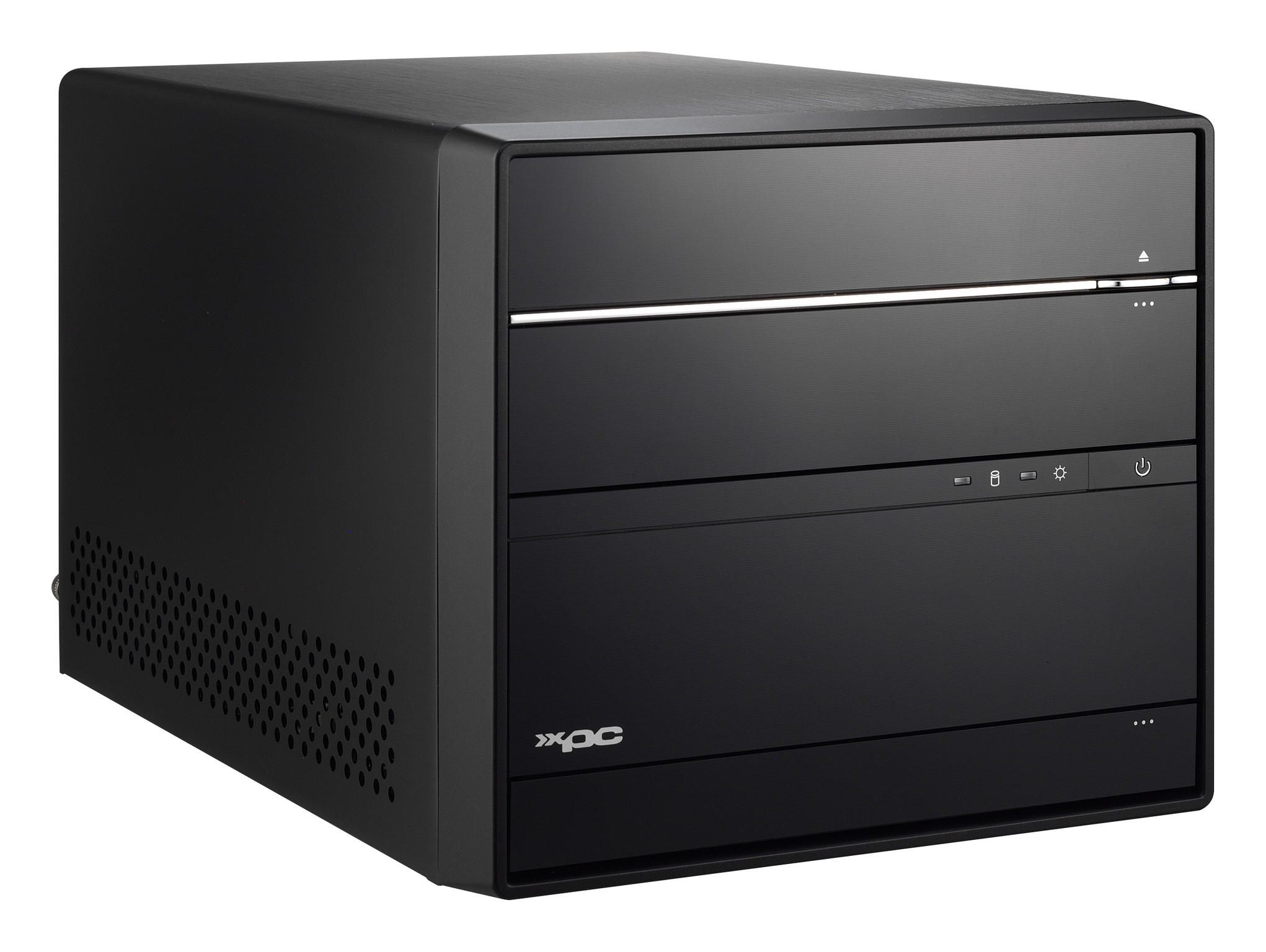

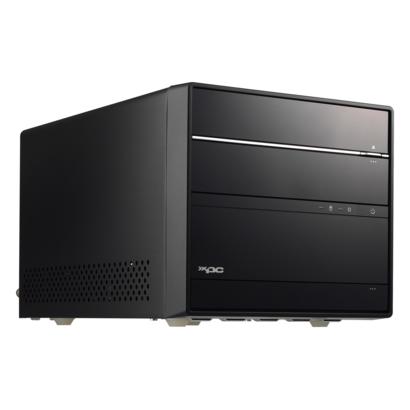

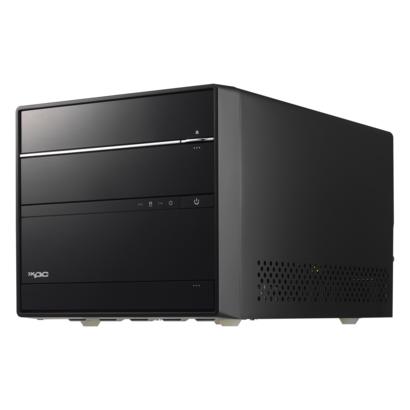

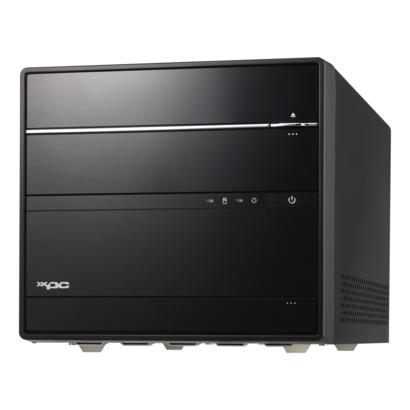

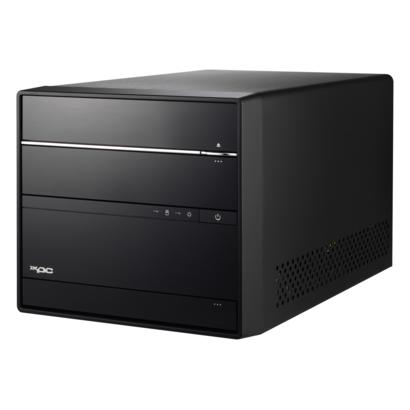

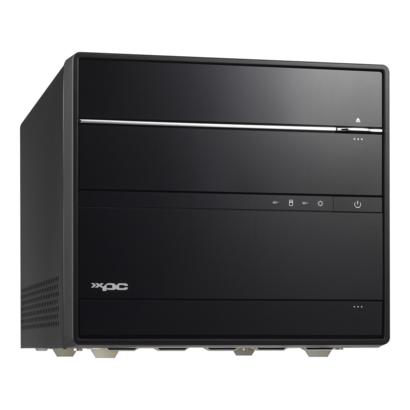

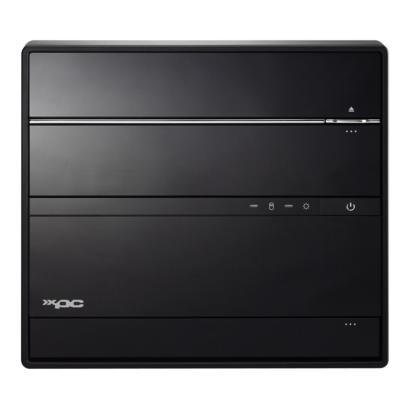

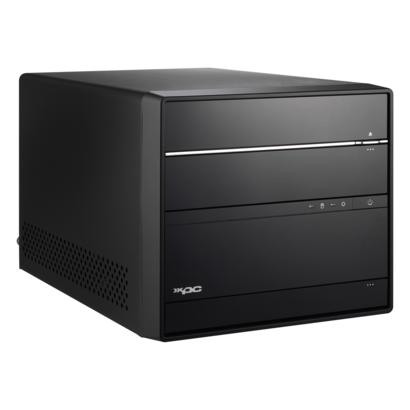

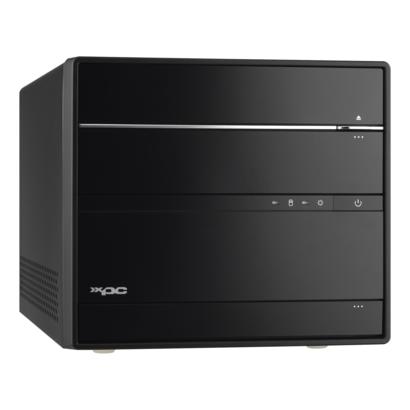

Shuttle Mini PC with heatpipe cooling for LGA1151 "Skylake" processors
The Shuttle XPC Barebone SH170R6 packs the 6th Generation of Intel Core desktop processors for LGA1151 socket into an elegant, fresh case design. The aluminium case cover with a black-brushed surface has a volume of 14 litre which is just a third of the volume of a standard Midi tower. Despite its small dimensions, it is brimming with features. Set up a top-performer with the latest LGA1151 "Skylake" processor, a dual-slot PCI Express graphics card, M.2-SSD, two 6 TB hard disks in RAID mode and up to 64 GB of DDR4 memory, plus Blu-ray drive. However, also cost-effective configurations without dedicated graphics cards are possible, since Intel's Skylake generation offers an amazing inbuilt CPU and graphics performance with low energy consumption.

High-resolution DisplayPort
The DisplayPort connector allows for connections with digital high-resolution displays. Depending on processor and display model resolutions of up to 4K/Ultra HD (3840x2160) can be achieved. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality.

HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.

Dual-slot graphic cards? No problem!
The creative engineers at Shuttle have worked out how to fit large and incredibly powerful dual-slot graphics cards into this compact PC. The special dimensions of the cards and the unusual fan size cause no problems at all in this Mini-PC.

Intelligent cooling
Shuttle's patented Heatpipe Cooling technology with variable speed control automatically ensures maximum system stability and quiet operation in this aluminium Shuttle Mini-PC. Instead of swirling around the chassis, as is the case with conventional solutions, the warm air is specifically transferred out of the chassis.

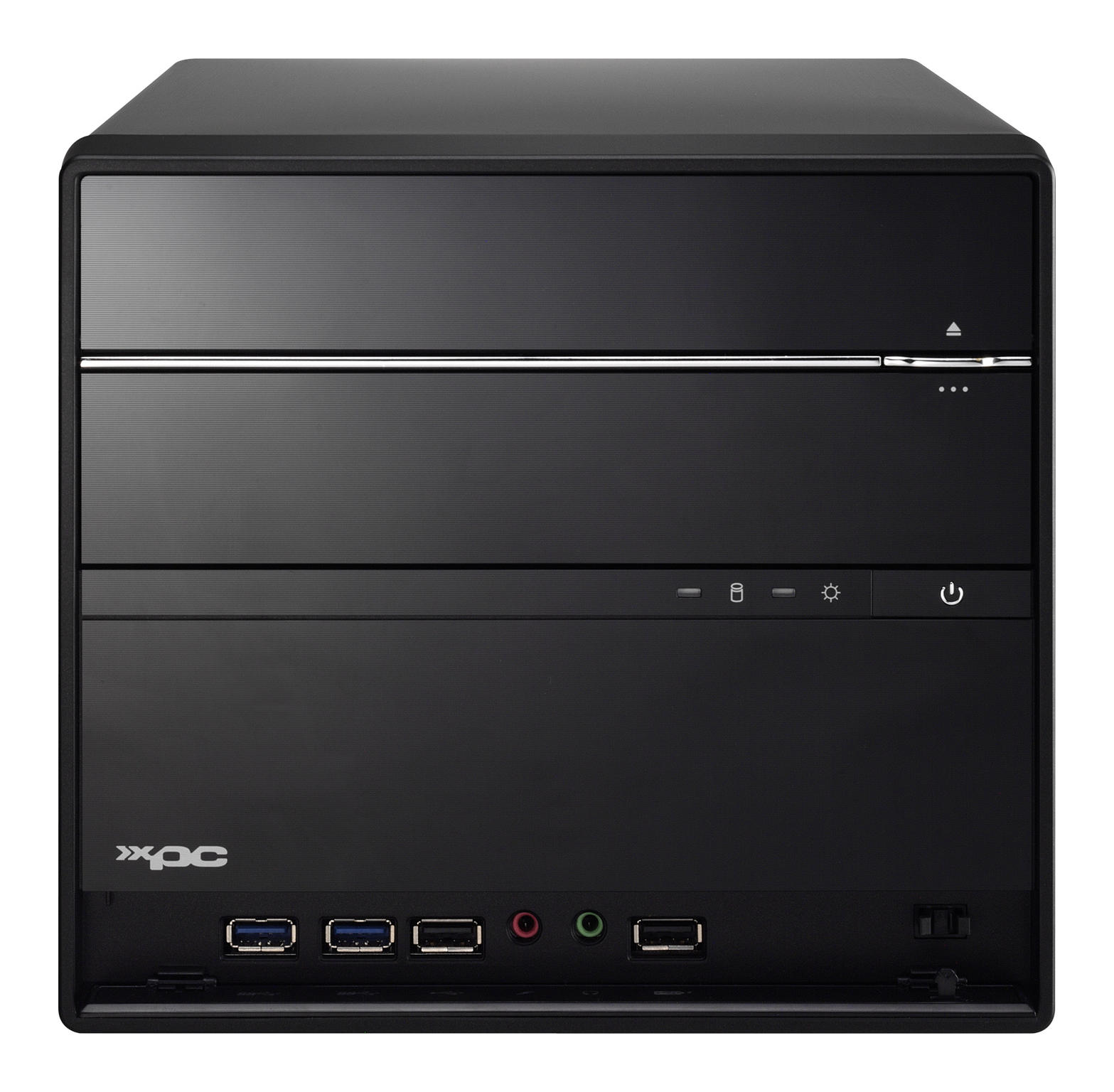

Cleverly hidden

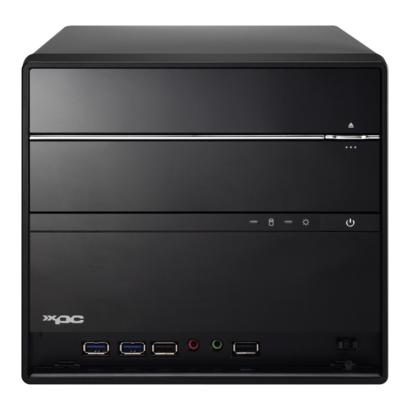

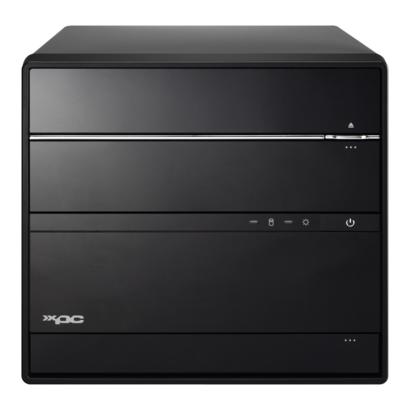

In this model the ports and drives are hidden behind moveable panels that offer ideal protection from dust and ensure a clean, harmonious look. Not everyone needs to be able to see just what your Mini-PC can do.

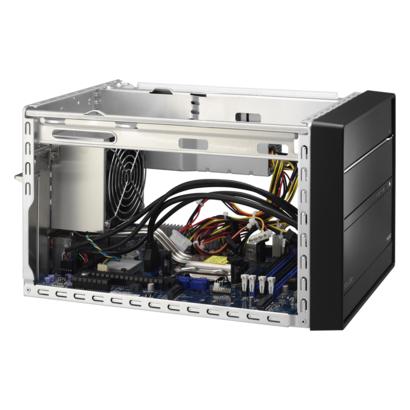

Optimal air flow
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system.

Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.

PCI Express technology
A fast X16-PCI-E slot enables the use of modern 3D graphics cards and other expansion cards that have to transfer huge amounts of data at ultra-rapid speeds.

External eSATA port
With this interface external hard drives can reach the same speeds as inbuilt versions. Just give it a try.

For a longer life and more system stability
All the components of the highly integrated mainboard of this PC are fitted with modern solid capacitors, which offer six times the lifespan of normal capacitors.

Shuttle opts for lightweight aluminium
The use of aluminium in Mini-PCs has significant advantages. Aluminium has an ideal balance between weight and strength, does not rust and is not sensitive to magnetism. Its thermal conductivity is four times higher than steel. All in all, it's a perfect material for Mini-PCs.

Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.

The interface for the fastest of memory media
Internal drives to be used inside this Mini-PC can transfer data at a speed of up to 6 Gbit/s. Hard drives thus run significantly faster and brand-new media technologies such as SSDs can use their full potential. Be sure to look for SATA 6 Gbit/s.

The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.

Intelligent fan control
The Smart Fan system promises low operating noise with its large, slowly rotating fans, which generate a very large airflow and have automatic variable speed control.

Generous supply of USB ports
You can never have enough of those versatile USB ports. This Shuttle Mini-PC offers 10 ports, with further ports for internal expansions located on the mainboard.

Space for two hard disks
This Mini-PC chassis provides plenty of space for two 3.5" HDDs that provide many Terabytes of memory. The generous ventilation between the drives ensures there is no build-up of heat.

8-channel HD audio
The superior high-definition sound not only gives that perfect cinema feeling at home, it also offers optimal sound quality for your Skype VOIP telephone conferencing. Conveniently located ports ensure ultimate user friendliness.

Advies nodig?

Onze klantenservice is nu gesloten.

Of bel 010 44 55 400

Schrijf een review

Geen review

Schrijf ook een review en help andere klanten de juiste keuze te maken.

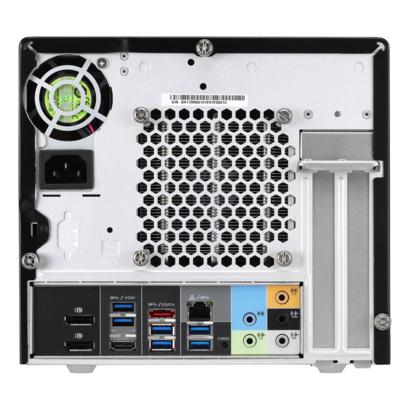

Poorten & interfaces

Totaal aantal SATA-connectoren: 4
Aantal Displayport-poorten: 2
Hoofdtelefoonuitgangen: 1
Microfoon, line-in ingang:
Aantal USB 2.0-poorten: 2
Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 8
HDMI versie: 1.4
Aantal eSATA-poorten: 1
Aantal HDMI-poorten: 1
Aantal LAN poorten: 1
Aantal VGA-poorten:


On-board graphics:
Ingebouwde grafische adapter:


Type koeling: Actief
Kabelslot sleuf type: Kensington
LED-indicatoren: HDD, Stroom
Bevestigingsmogelijkheid voor kabelslot:
Kleur: Zwart
Producttype: PC barebone

Eisen aan de omgeving

Temperatuur, in bedrijf: 0 - 35 °C
Relatieve luchtvochtigheid, in bedrijf: 10 - 90 procent


Processor lithografie: 14 nm
Type processor:
Processor: Intel

Inhoud van de verpakking

Inclusief netsnoer:
Meegeleverde drivers:


Chipset moederbord: Intel H170
Compatibele processors: Core i3,Core i5,Core i7,Pentium
Aantal ondersteunde processoren: 1
Processor socket: LGA 1151 (Socket H4)


Ondersteunde types opslag-drives: HDD, SSD
Soorten RAID: 0, 1, 5, 10, JBOD
Opslag schijf-interface: M.2, SATA III
Geïntegreerde geheugenkaartlezer:
Opslagschijf afmetingen ondersteund: 2.5,3.5"


Energy Star-certificaat:
Veiligheid: ETL, CB, BSMI
Certificering: FCC, CE, BSMI, C-Tick, RoHS, ErP 2013


Aantal voedingen: 1
Soort voeding: Interne voeding
Netvoeding: 300 W
AC invoer frequentie: 50/60
AC invoer voltage: 100 - 240


Supported memory clock speeds: 2133 MHz
Max werkgeheugen: 64GB
Geheugenslots: 4
Type geheugen: DDR4
Geheugen slots type: DIMM
Aantal geheugenslots: 4
Type werkgeheugen: DDR4


Audiosysteem: HD
Audio output channels: 7.1 kanalen


Ondersteunt Linux:
Ondersteunt Windows: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64


Gewicht verpakking: 5 kg


Ethernet LAN:




PCI Express x4 slots: 1
PCI Express x16 slots: 1

Gewicht en omvang

Hoogte: 198 mm
Breedte: 216 mm
Gewicht: 3,5 kg
Diepte: 332 mm
