Shuttle XPC Slim DS77U, Cel-3865U/DDR4/M.2&SSD/HD610

Niet meer leverbaar.

Helaas dit product is niet meer leverbaar, wij doen ons best je een alternatief product aan te bieden. Let op: het alternatief kan afwijken qua prijs en/of specificaties.


Processormodel 3865U
On-board graphics
Type werkgeheugen DDR4
Max werkgeheugen 16GB
Geheugenslots 2


Artikelcode BAREBSHSL110
Partnummer PEB-DS77U001
EANcode 887993001166
Garantietermijn 2jr

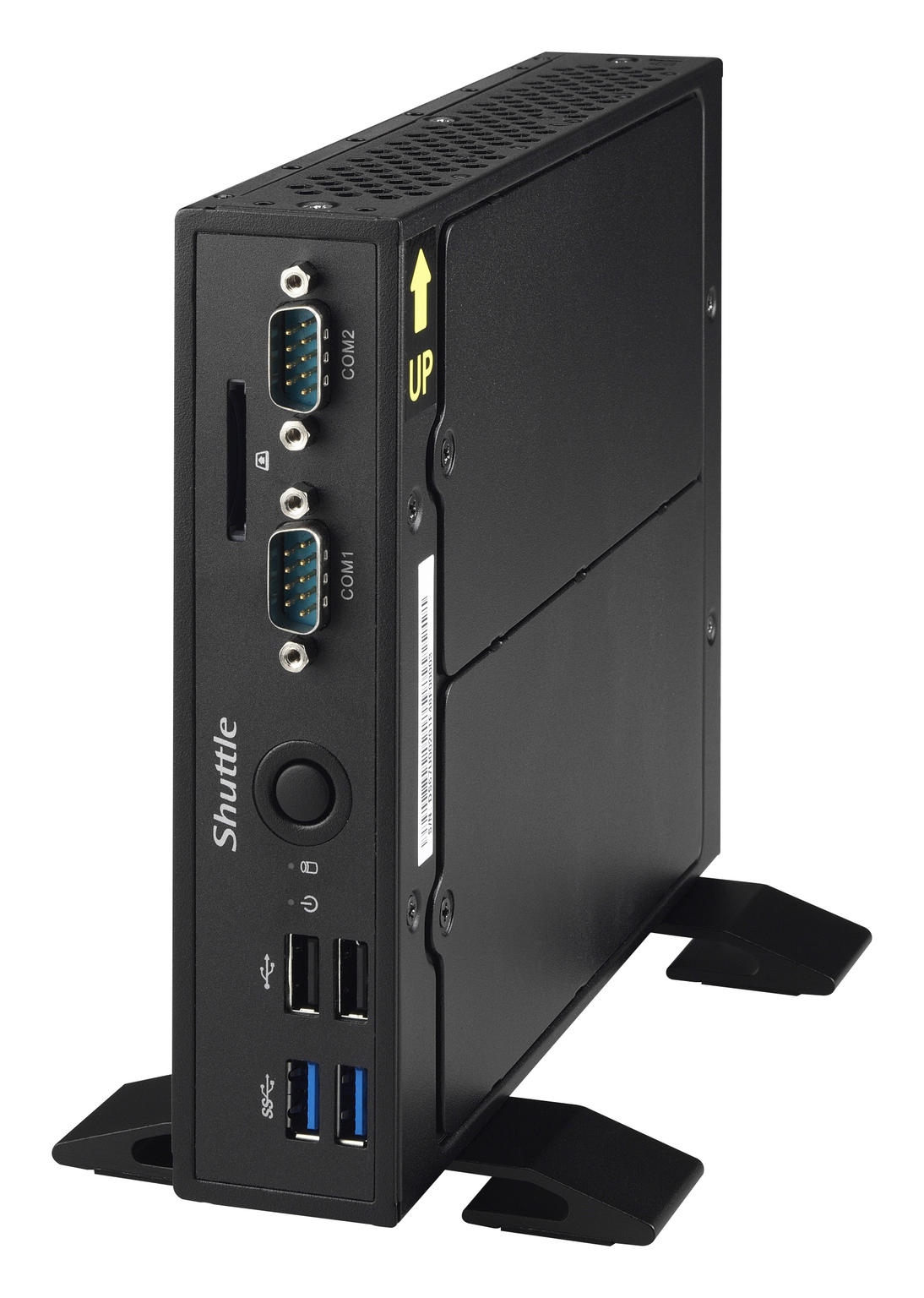

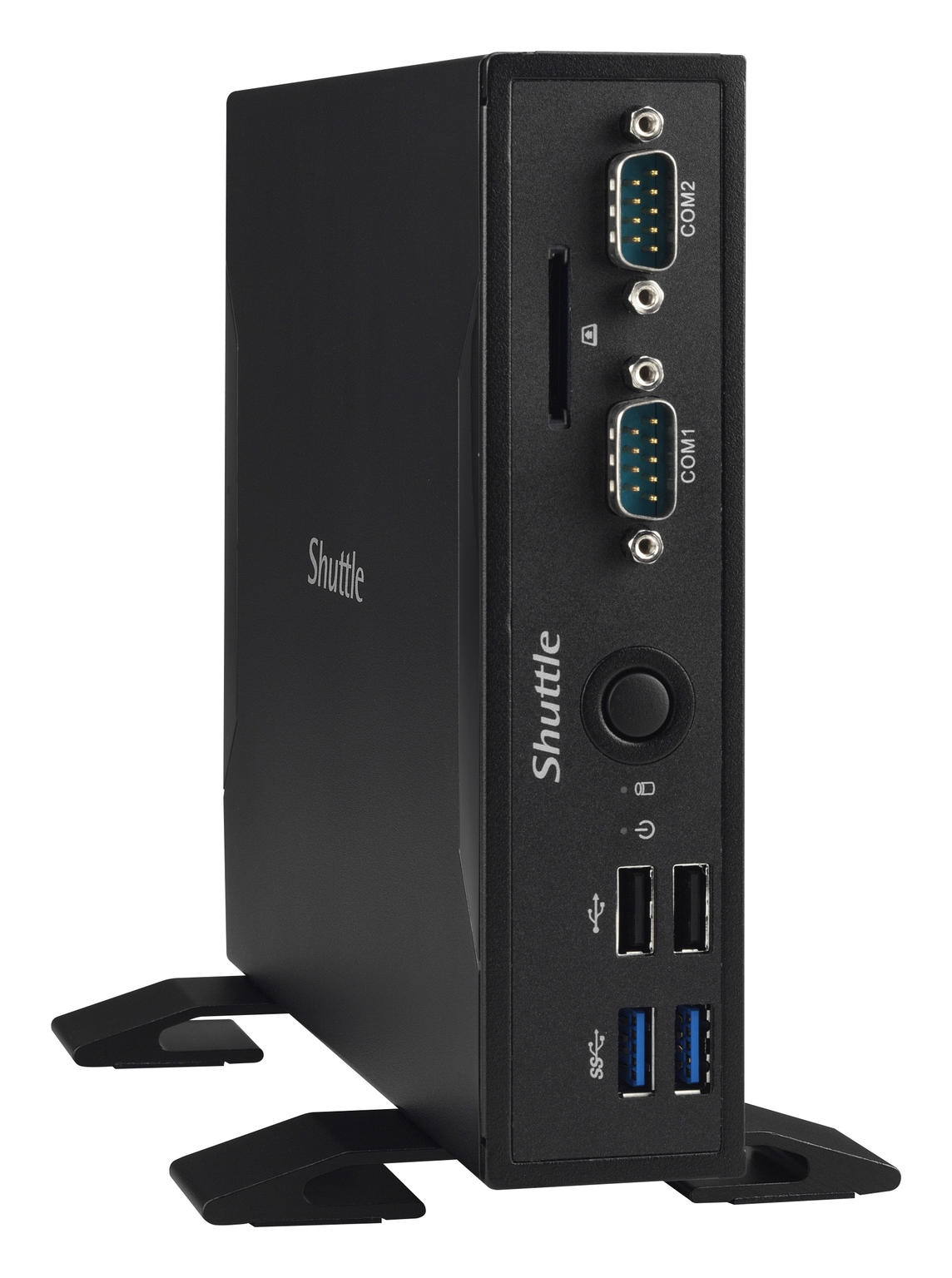

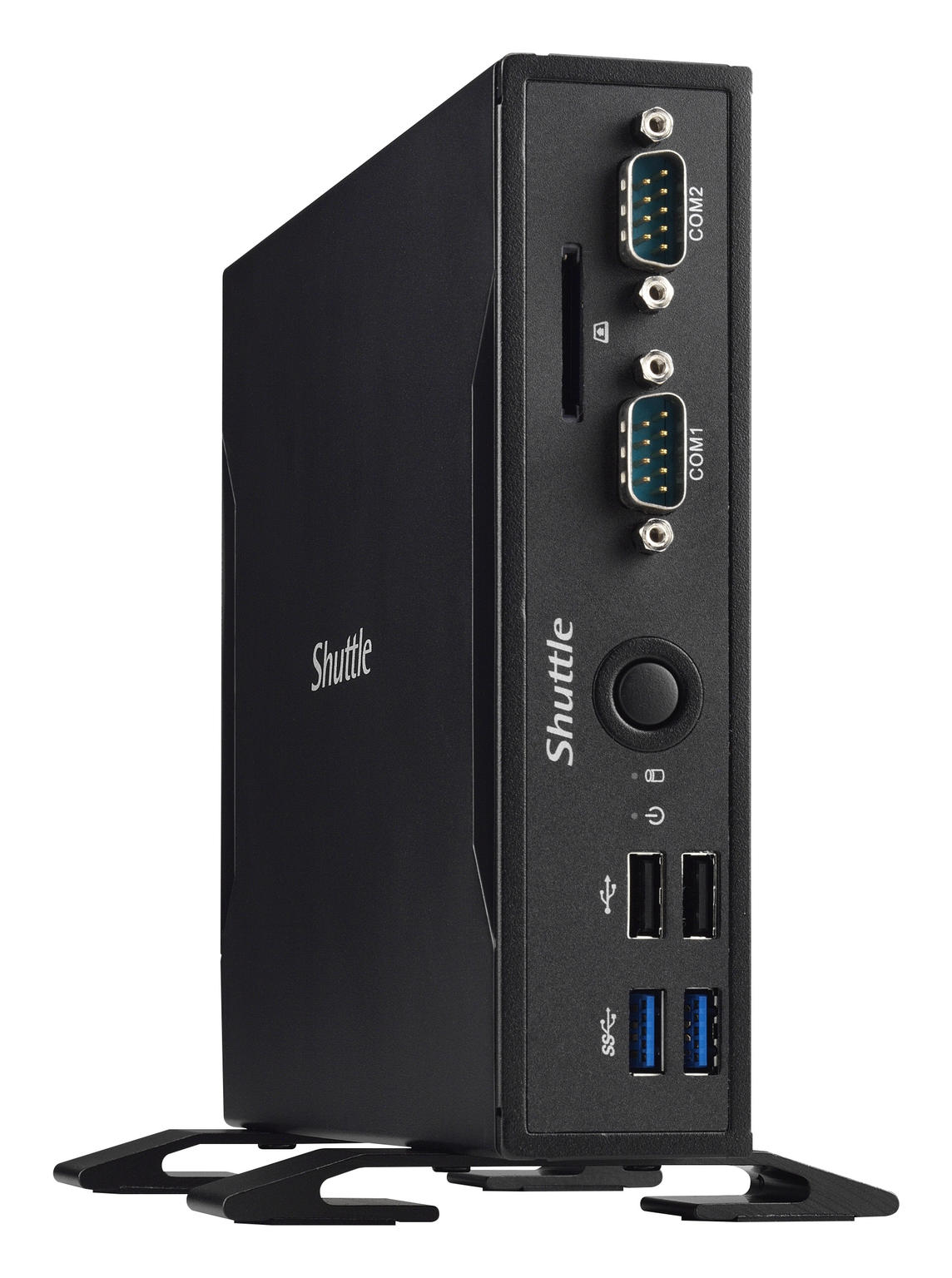

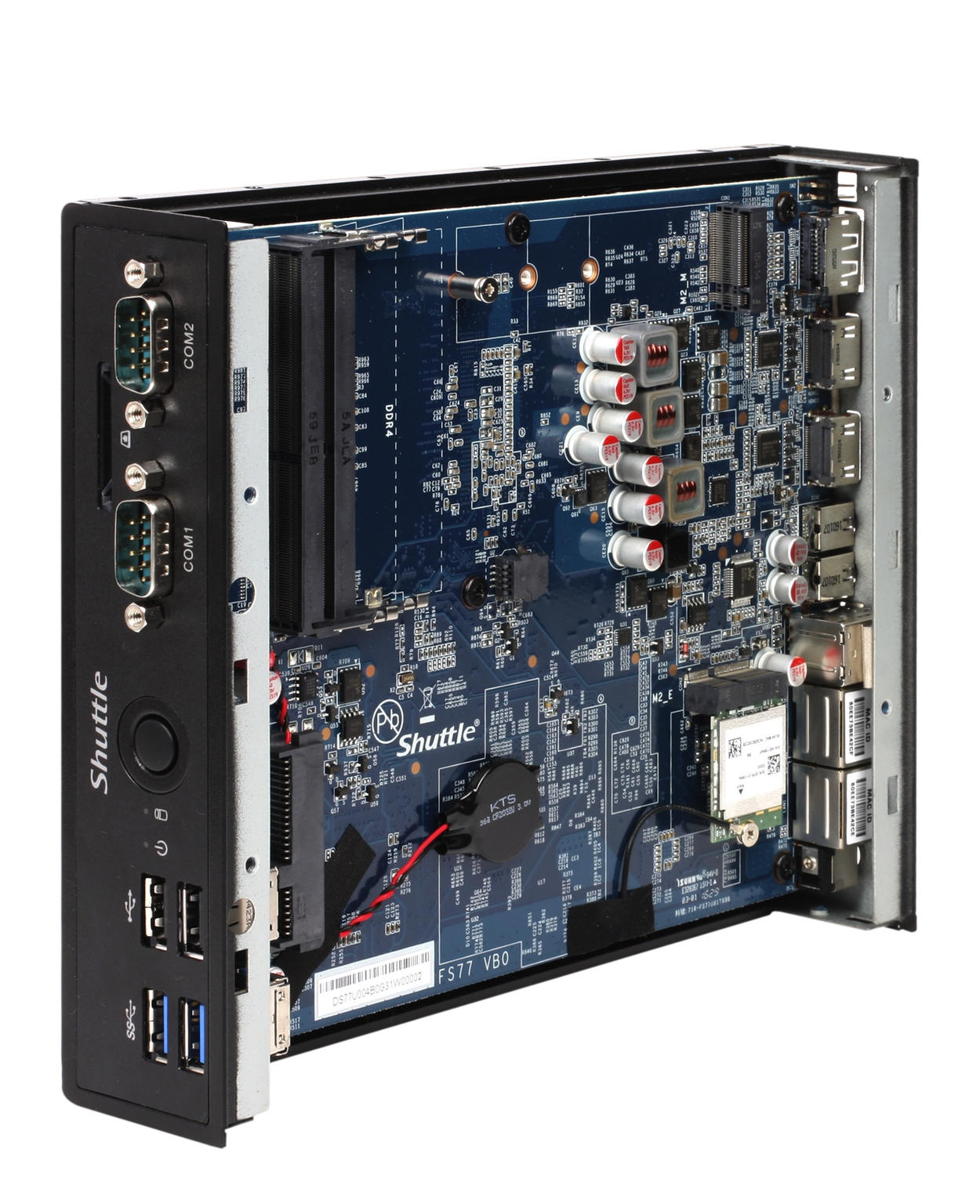

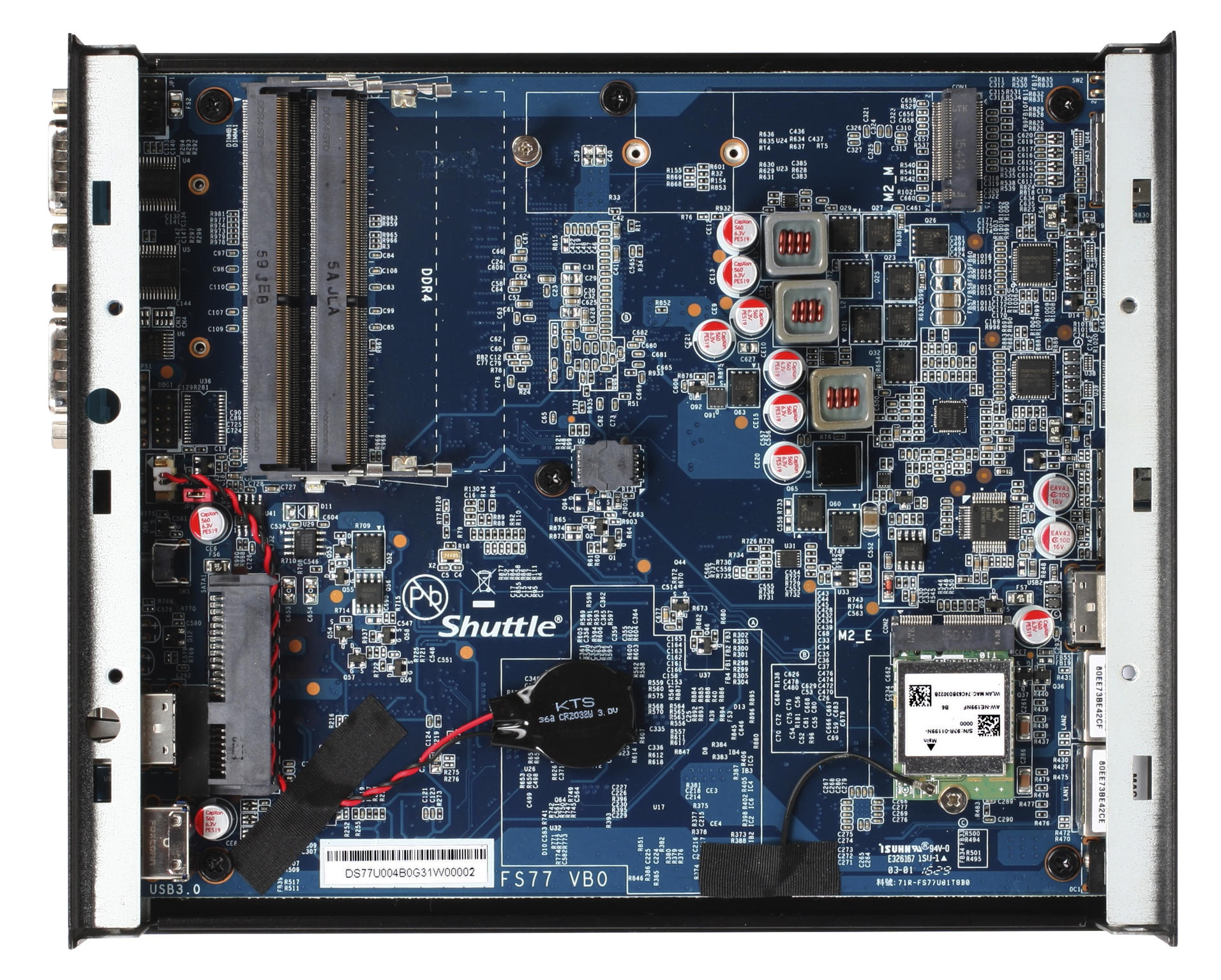

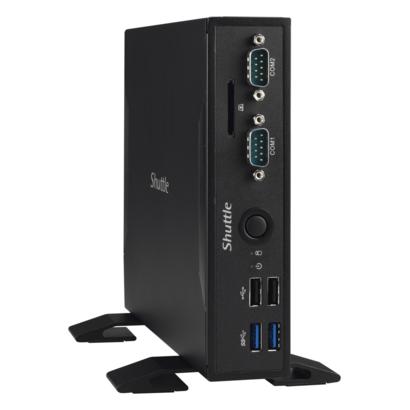

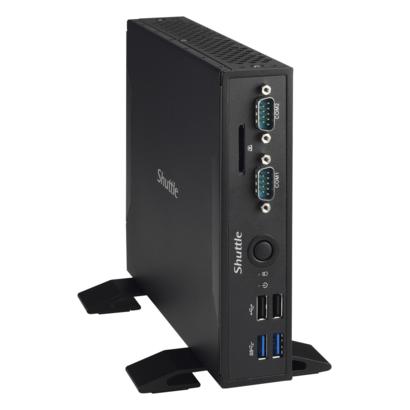

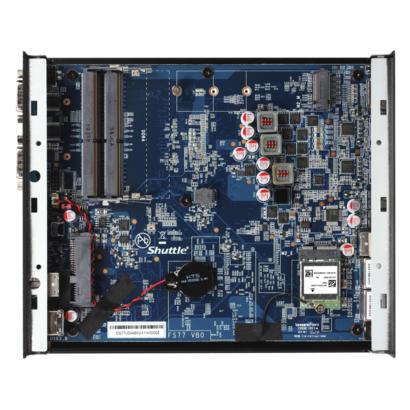

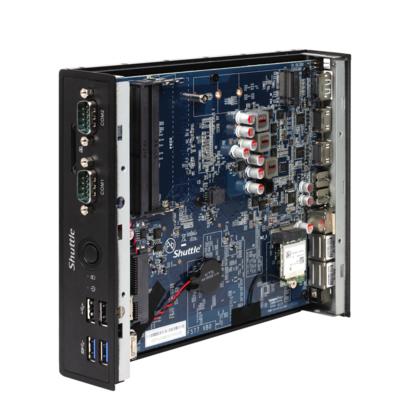

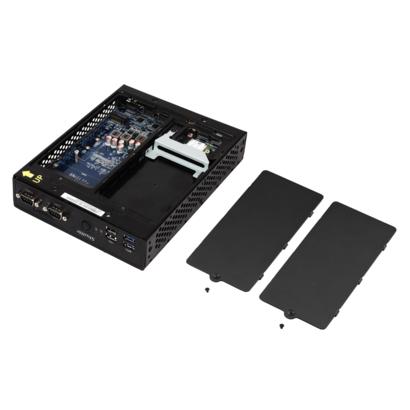

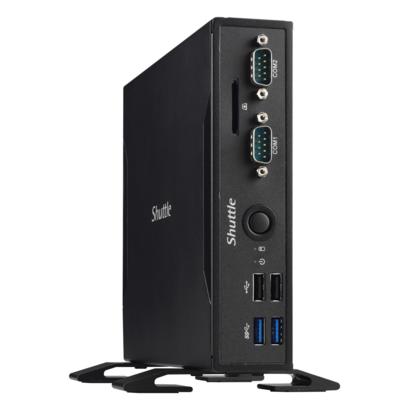

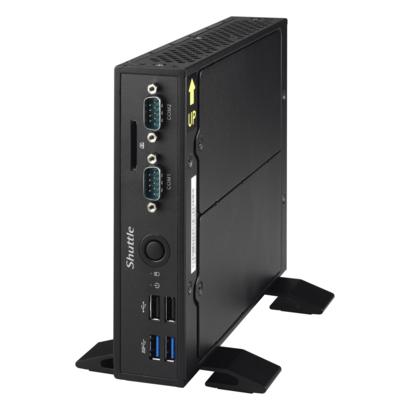

The DS77U is a fanless slim PC with a robust 1.3 litre metal chassis and exceptional connectivity: 2x HDMI, DisplayPort, Dual Intel LAN, USB 3.0/2.0, serial ports, audio, card reader and integrated W-LAN. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, a 2.5" drive and an M.2-2280 SSD card. The built-in Dual Core Intel "Kaby-Lake-U" processor with integrated graphics provides ample performance for playback of 4K content. Thanks to its re-designed passive cooling architecture, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS77U is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Cloud Computing, Office PC and Multimedia.

High-resolution DisplayPort
The DisplayPort connector allows for connections with digital high-resolution displays. Besides picture signal, DisplayPort cables can also lead digital sounds signals in excellent quality.

HDMI interface
Goodbye cable spaghetti! Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.

Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.

Dual network connection
In this model two gigabit network controllers ensure maximum data transmission rates via load balancing and maximum availability via the failover function.

The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.

Pre-assembled cabling saves time
The most important power and data cables are already routed and just have to inserted into the relevant components. This saves valuable time when setting up the system.

Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.

Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.

You can rely on SSD
This is where an energy-saving "Solid State Drive" should be used. This drive technology guarantees extremely short access times, the highest data transmission rates and considerably lower energy consumption compared to conventional hard disks. SSDs have no mechanical components at all, are therefore subject to less wear and tear and consequently benefit from a longer service life.

Just 2.5" HDDs
An extremely compact PC housing offers less space for drives, that's why this Mini-PC uses slimline 2.5-inch hard disks. The advantage of this is that there's less noise, less heat generated and reduced power consumption. However small hard disks in a small housing does not have to mean less memory. Modern 2.5" HDDs are every bit as good as their 3.5" brothers.

Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.

Optimal air flow
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system.

Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.

Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.

Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.

Advies nodig?

Onze klantenservice is nu gesloten.

Of bel 010 44 55 400

Schrijf een review

Geen review

Schrijf ook een review en help andere klanten de juiste keuze te maken.

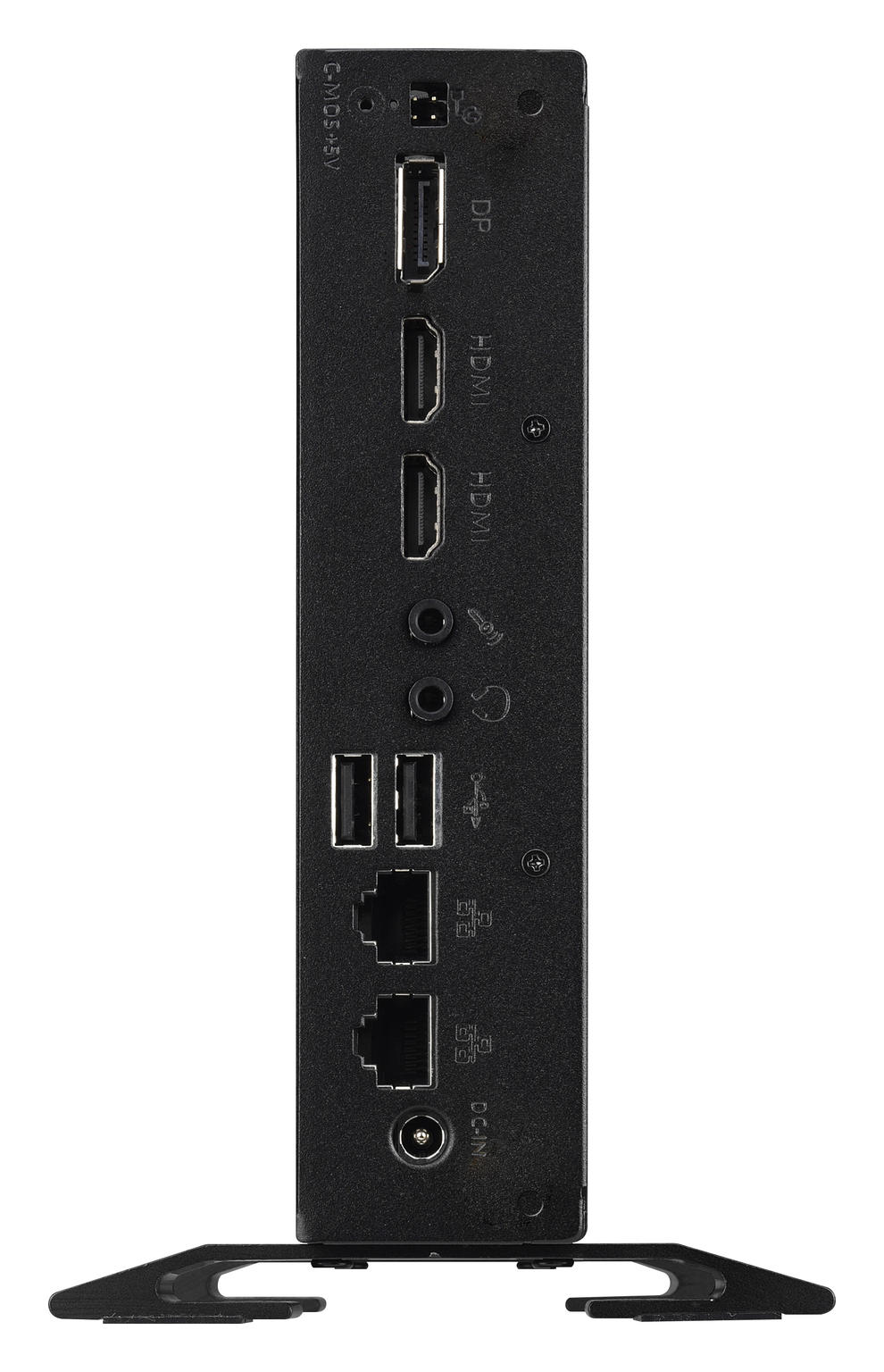

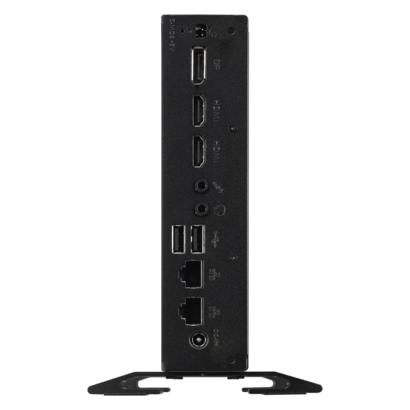

Poorten & interfaces

Seriële poort(en): 2
Totaal aantal SATA-connectoren:
Aantal Displayport-poorten: 1
Hoofdtelefoonuitgangen: 1
Microfoon, line-in ingang:
Aantal USB 2.0-poorten: 4
Aansluiting voor netstroomadapter:
Aantal poorten USB 3.0 (3.1 Gen 1) Type A: 2
HDMI versie: 1.4b
Aantal HDMI-poorten: 2
Aantal LAN poorten: 2
Aantal VGA-poorten:

Inhoud van de verpakking

Inclusief AC-adapter:
Inclusief netsnoer:
Inclusief monitor:


Supported memory clock speeds: 2133 MHz
Max werkgeheugen: 16GB
Geheugenslots: 2
Type geheugen: DDR4
Geheugen voltage: 1.2 V
Geheugen slots type: SO-DIMM
Aantal geheugenslots: 2
Geheugen kanaal: Dual
Type werkgeheugen: DDR4


processorkernen: 2
Processor lithografie: 14 nm
Processormodel: 3865U
Type processor:
Processor aantal threads: 2
Thermal Design Power (TDP): 15 W
Frequentie van processor: 1,8 GHz
Processor: Intel Celeron


Wi-Fi-standaarden: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
LAN controller: Intel I211,Intel i219 PHY
Ethernet LAN:

Gewicht en omvang

Hoogte: 39,5 mm
Breedte: 165 mm
Gewicht: 1,43 kg
Diepte: 200 mm


Ondersteunde types opslag-drives: HDD, SSD
Compatibele geheugenkaarten: SD,SDHC,SDXC
Opslag schijf-interface: M.2, SATA III
Geïntegreerde geheugenkaartlezer:
Soort optische drive:
Opslagschijf afmetingen ondersteund: 2.5"


Energy Star-certificaat:
Veiligheid: ETL, CB, BSMI
Certificering: FCC, CE, BSMI, C-Tick, RoHS, ErP


Aantal voedingen: 1
Soort voeding: Externe AC-adapter
Netvoeding: 65 W
AC-adapter, uitgangsspanning: 19 V
AC-adapter, uitgangsstroom: 3,42 A
AC invoer frequentie: 50/60
AC invoer voltage: 100 - 240


On-board graphics:
Ingebouwde grafische adapter:
Grafische adapter: HD Graphics 610
Grafische adapter-familie: Intel


Compatibele besturingssystemen: Windows 10 64-bit, Linux 64-bit


Type behuizing: 1.3L maat pc
Type koeling: Passief
Kabelslot sleuf type: Kensington
LED-indicatoren: HDD, Stroom
VESA-standaard: 75x75, 100x100 mm
Bevestigingsmogelijkheid voor kabelslot:
Kleur: Zwart
Producttype: Mini PC barebone

Eisen aan de omgeving

Temperatuur, in bedrijf: 0 - 40 °C
Relatieve luchtvochtigheid, in bedrijf: 10 - 90 procent


Audiosysteem: HD


Gewicht verpakking: 2,13 kg


Chipset moederbord: Intel SoC
Aantal ondersteunde processoren: 1
Processor socket: BGA 1356


PCI Express slots versie: 2.0
