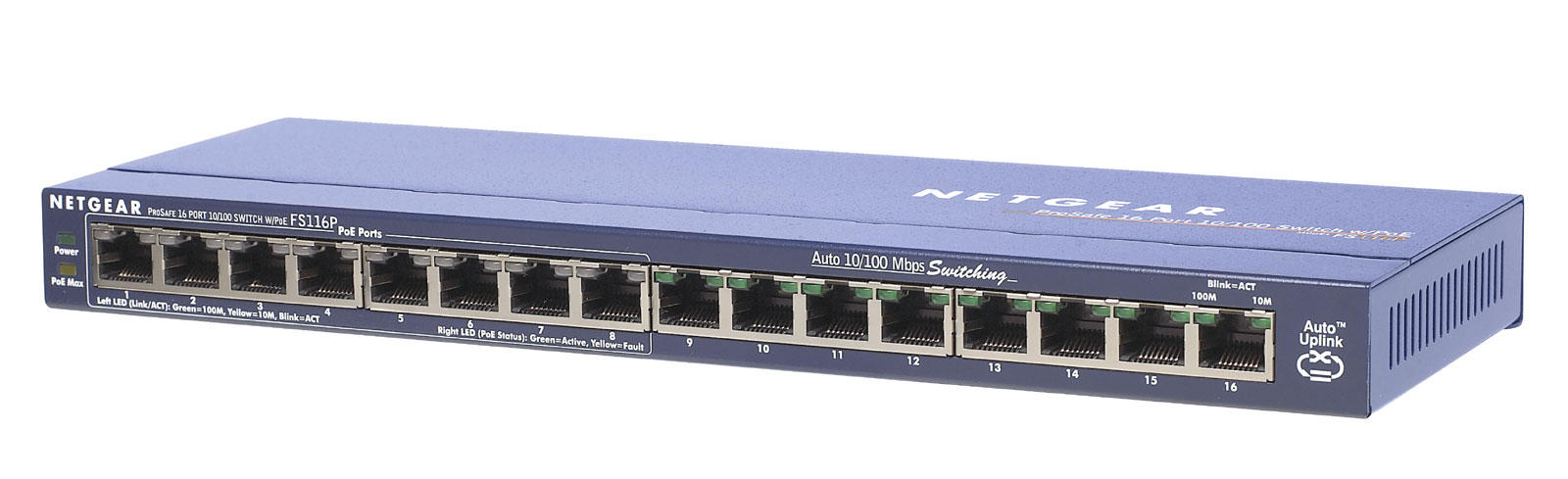

The ProSafe FS116P provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The sixteen Fast Ethernet ports can be used for any 10/100 Mbps link and eight of these ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to 802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the ProSafe FS116P automatically determines PoE requirements, speed, duplex, and cable type using AutoUplink™
Specifications:
- Network Ports: 16 auto speed-sensing 10/100 Mbps
RJ-45 ports
• Network Protocol and Standards:
• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.1p priority tags
• IEEE 802.3x Flow Control
• IEEE 802.3af DTE Power via MDI
-
• Performance Specifications
– Forwarding modes: Store-and-forward
– Bandwidth: 3.2 Gbps
– Network latency: Less than 20 µs for
64-byte frames in store-and-forward
mode for 100 Mbps to 100 Mbps
transmission
– Buffer memory: 96 KB embedded
memory per unit
– Address database size: 1,000 media
access control (MAC) addresses per
system
– Addressing: 48-bit MAC address
– Mean Time Between Failure (MTBF):
116,009 hours (~ 13 years)
- Performance Specifications;
• Forwarding modes: Store-and-forward
• Bandwidth: 3.2 Gbps
• Network latency: Less than 20 µs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
• Buffer memory: 96 KB embedded memory per unit
• Address database size: 1,000 media access control (MAC) addresses per system
• Addressing: 48-bit MAC address
• Mean Time Between Failure (MTBF): 116,009 hours (~ 13 years)
• Acoustic noise: 0 dB
